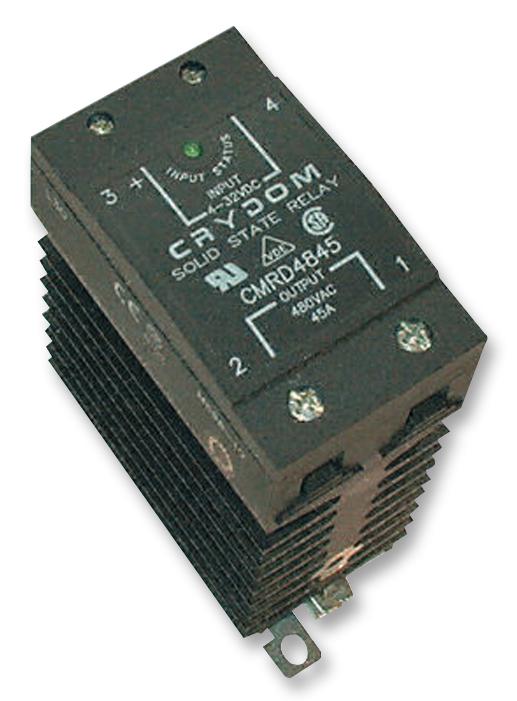

SENSATA/CRYDOM - CMRD4845 - Solid State Relay, SPST-NO, 45 A, 530 Vrms, DIN Rail, Cage Clamp, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 45A
- Operating Voltage Max: 530Vrms
- Relay Mounting: DIN Rail
- Relay Terminals: Cage Clamp
- Switching Mode: Zero Crossing
- Operating Voltage Min: 48Vrms
- Control Voltage Min: 4VDC
- Control Voltage Max: 32VDC
- Product Range: SSR CMRD Series
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE, CSA, VDE
- Approval Category: UL Recognised
- Blocking voltage: 1200V
- Control Current @ 5VDC: 14mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Range: 4V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 109.2mm
- External Length / Height: 76.2mm
- External Width: 44.5mm
- I2t: 1620s
- Insulation Resistance: 1000Mohm
- Leakage Current: 10mA
- Load Current Max: 45A
- Load Current Min: 0.15A
- Load Current RMS Max: 45A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 48Vrms to 530Vrms
- Output Type: SCR
- Peak Surge Current: 625A
- Power Factor: 0.5
- RMS Load Current Min: 0.15A
- RMS Load Voltage Max: 530V
