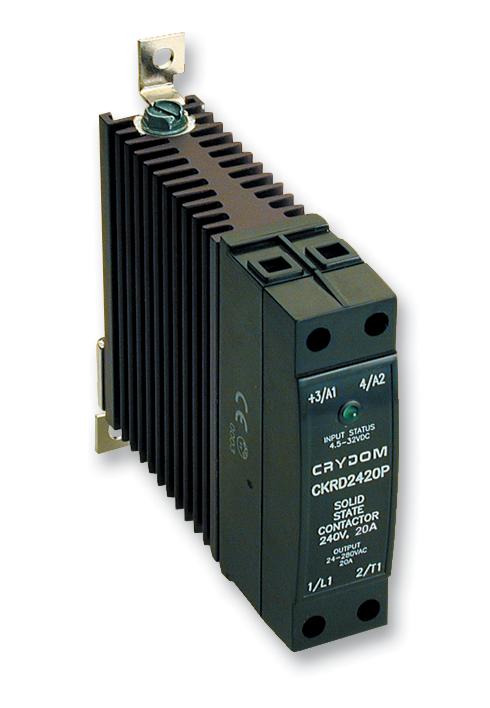

SENSATA/CRYDOM - CKRD2420 - Solid State Relay, SPST-NO, 20 A, 280 Vrms, DIN Rail, Cage Clamp, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 20A
- Operating Voltage Max: 280Vrms
- Relay Mounting: DIN Rail
- Relay Terminals: Cage Clamp
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24Vrms
- Control Voltage Min: 4VDC
- Control Voltage Max: 32VDC
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Blocking voltage: 600V
- Control Current Min: 15mA
- Control Current Typ: 20mA
- Control Voltage DC Max: 32VDC
- Control Voltage DC Min: 4VDC
- Control Voltage Range: 4V DC to 32V DC
- Control Voltage Type: DC
- External Depth: 99mm
- External Length / Height: 81.3mm
- External Width: 22.4mm
- Input Voltage Max: 4.5VDC
- Input Voltage Min: 32VDC
- Leakage Current: 10mA
- Load Current Max: 20A
- Load Current Min: 150mA
- Load Current RMS Max: 20A
- Operating Voltage Range: 24Vrms to 280Vrms
- Output Type: SCR
- Peak Surge Current: 250A
- RMS Load Current Min: 0.15A
- RMS Load Voltage Max: 280V
- RMS Load Voltage Min: 24V
- Rate of Voltage Change dv / dt: 500V/s
- Single Cycle Surge Current: 250A
- Surge Current: 250A
