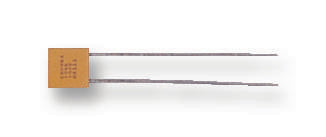

KYOCERA AVX - CK05BX222K - Multilayer Ceramic Capacitor, 2200 pF, 100 V, ± 10%, Radial Leaded, X7R, 5.08 mm
- Capacitance: 2200pF
- Voltage Rating: 100V
- Product Range: CK05 Series
- Capacitance Tolerance: ± 10%
- Capacitor Terminals: Radial Leaded
- Dielectric Characteristic: X7R
- Lead Spacing: 5.08mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Capacitance Tolerance ±: ± 10%
- Climatic Category: 55/125/56
- External Depth: 2.29mm
- External Length / Height: 4.83mm
- External Width: 4.83mm
- Height: 4.83mm
- Insulation Resistance: 100000Mohm
- Lead Diameter: 0.64mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Power Factor: 0.025
- Proof Voltage: 250V
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 100V
