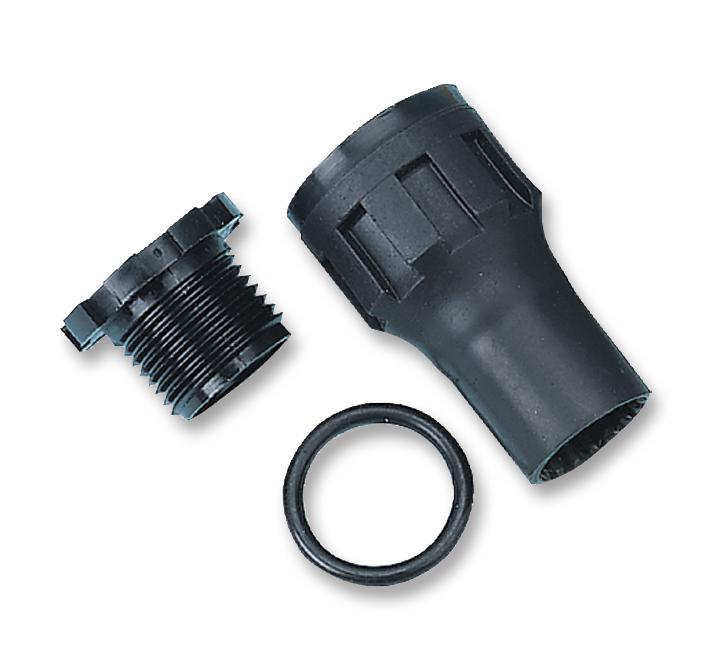

RAYCHEM - TE CONNECTIVITY - CES-2 - Heat Shrink Boot, Cable Entry Seal, Straight, 0.75 ", 19.1 mm, Black, 2.75 ", 69.85 mm
- Boot Configuration: Straight
- I.D. Supplied - Imperial: 0.75"
- I.D. Supplied - Metric: 19.1mm
- Shrink Tubing / Boot Colour: Black
- Total Length - Imperial: 2.75"
- Total Length - Metric: 69.85mm
- I.D. Recovered Max - Imperial: 0.25"
- I.D. Recovered Max - Metric: 6.4mm
- Shrink Tubing / Boot Material: PO (Polyolefin)
- Shrink Ratio: 3
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Accessory Type: Heat Shrinkable Cable Entry Seal
- Approval Bodies: ABS, DNV, LLOYDS
- Body Material: PO (Polyolefin)
- Cable Diameter Max: 19.05mm
- Cable Diameter Min: 6.35mm
- Colour: Black
- External Length / Height: 69.85mm
- Fully Shrunk Diameter: 6.4mm
- I.D. Max Recovered: 6.4mm
- I.D. Supplied: 19.1mm
- Internal Diameter: 19.1mm
- Material: Nylon / Polyolefin
- Operating Temperature Max: 90°C
- Operating Temperature Min: -55°C
- Panel Cutout Width: 25.4mm
- Shrink Temperature: 121°C
- Shrink Type: Heat
- Unshrunk Diameter: 19.1mm
