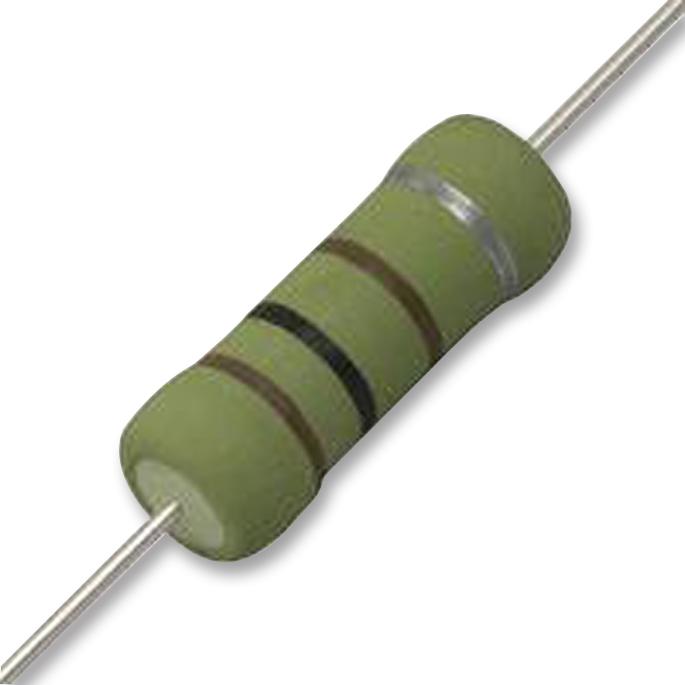

CGS - TE CONNECTIVITY - CCR218RKB - Through Hole Resistor, 18 ohm, CCR, 2 W, ± 10%, Axial Leaded, 400 V
- Resistance: 18ohm
- Product Range: CCR Series
- Power Rating: 2W
- Resistance Tolerance: ± 10%
- Resistor Case Style: Axial Leaded
- Voltage Rating: 400V
- Resistor Element Material: Ceramic
- Temperature Coefficient: -900ppm/°C ± 300ppm/°C
- Automotive Qualification Standard: -
- External Length / Height: 7mm
- External Width: 19mm
- Lead Diameter: 0.8mm
- Lead Length: 38mm
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +200°C
- Resistor Mounting: Through Hole
- Withstand Voltage: 800V
