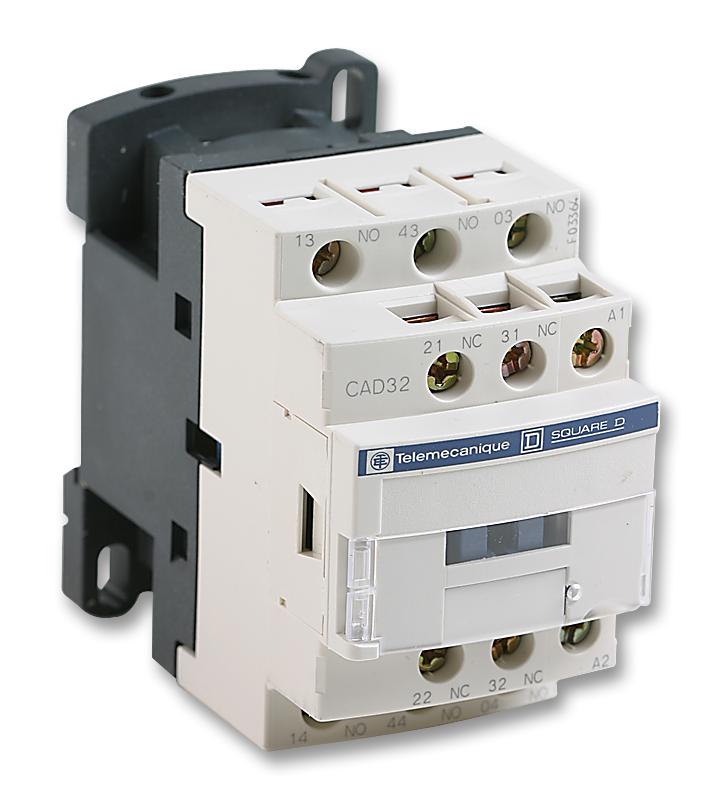

CAD32F7 Relay, 3NO, 2NC, 600VAC, 10A Schneider Electric

SCHNEIDER ELECTRICUGS :CAD32F7 Code de commande:3621753

Prix:
Prix ​​promotionnel€79,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

SCHNEIDER ELECTRIC - CAD32F7 - General Purpose Relay, CAD32 Series, Power, 3PST-NO, DPST-NC, 110 VAC, 10 A

  • Contact Configuration: 3PST-NO, DPST-NC
  • Coil Voltage: 110VAC
  • Contact Current: 10A
  • Product Range: CAD32 Series
  • Relay Mounting: DIN Rail
  • Coil Type: AC
  • Contact Voltage VAC: 690VAC
  • Relay Terminals: Screw
  • Contact Voltage VDC: -
  • Contact Material: -
  • Coil Resistance: -
  • SVHC: No SVHC (15-Jan-2018)
  • AC Coil Power: 8VA
  • Coil Operating Frequency Min: 50Hz
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VAC Nom: 110V
  • Contact Current AC Max: 10A
  • Contact Current Max: 10A
  • Contact Voltage AC Max: 690V
  • Contact Voltage AC Nom: 690V
  • External Depth: 86mm
  • External Height: 77mm
  • External Length / Height: 77mm
  • External Width: 45mm
  • Height: 77mm
  • IP / NEMA Rating: IP2X
  • Insulation Voltage: 690V
  • Nom Operating Power: 70VA
  • Operating Temperature Max: 60°C
  • Relay Type: Power
  • Standard: EN 60947 - 5

Frais de port prévus
