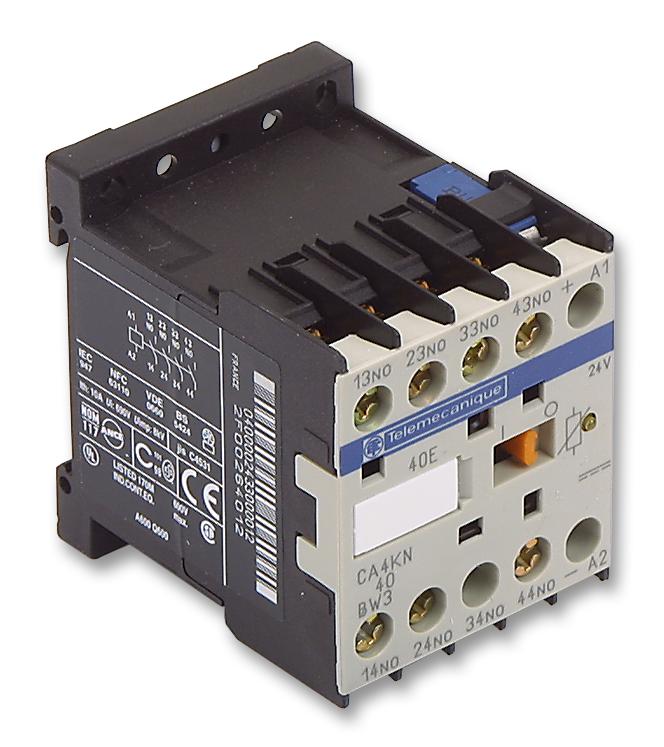

SCHNEIDER ELECTRIC - CA4KN40BW3 - General Purpose Relay, CA Series, Power, 4PST-NO, 24 VDC, 10 A
- Contact Configuration: 4PST-NO
- Coil Voltage: 24VDC
- Contact Current: 10A
- Product Range: CA Series
- Relay Mounting: DIN Rail, Panel
- Coil Type: DC
- Contact Voltage VAC: 600VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Contact Material: -
- Coil Resistance: -
- SVHC: No SVHC (15-Jan-2018)
- AC Coil Power: 4.5VA
- Approval Bodies: BIA, INRS
- Coil Operating Lower Percent Limit: 70%
- Coil Operating Upper Percent Limit: 130%
- Coil Voltage VDC Nom: 24V
- Contact Voltage AC Nom: 690V
- Contact Voltage DC Max: 120V
- DC Coil Power: 1.5W
- External Depth: 57mm
- External Height: 58mm
- External Length / Height: 58mm
- External Width: 45mm
- Nom Operating Power: 1.8W
- Relay Type: Power
- Termination Type: Screw Clamp
