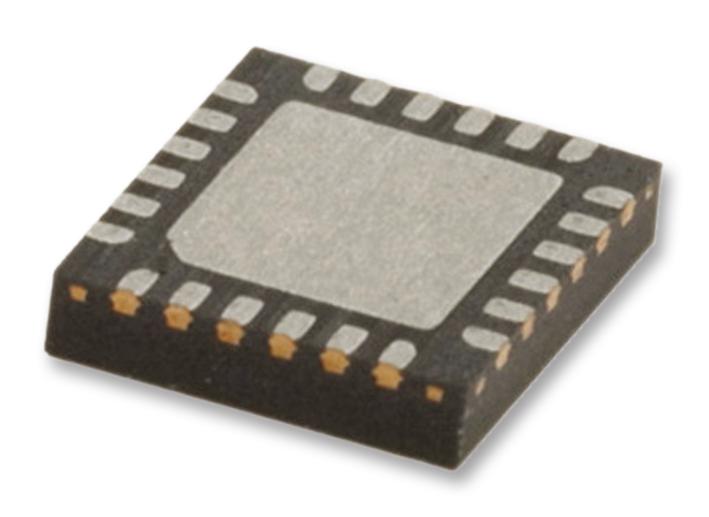

SILICON LABS - C8051F921-GM - 8 Bit MCU, High Speed CIP-51, C8051 Family C8051F92x Series Microcontrollers, 25 MHz, 32 KB, 4 KB
- Product Range: C8051 Family C8051F92x Series Microcontrollers
- CPU Speed: 25MHz
- Program Memory Size: 32KB
- RAM Memory Size: 4KB
- No. of Pins: 24Pins
- MCU Case Style: QFN
- No. of I/O's: 24I/O's
- Embedded Interface Type: SPI, UART
- Supply Voltage Min: 900mV
- Supply Voltage Max: 3.6V
- MCU Family: C8051
- MCU Series: C8051F92x
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- Controller Family/Series: C8051F9xx
- Flash Memory Size: 32KB
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: 2 comparators, on-chip debug, 16-bit PCA, WDT
- No. of ADC Inputs: 15
- No. of Bits: 8bit
- No. of External Interrupts: 15
- No. of MIPS: 25
- No. of PWM Channels: 6
- No. of Timers: 4
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator
- Program Memory Size: 32KB
