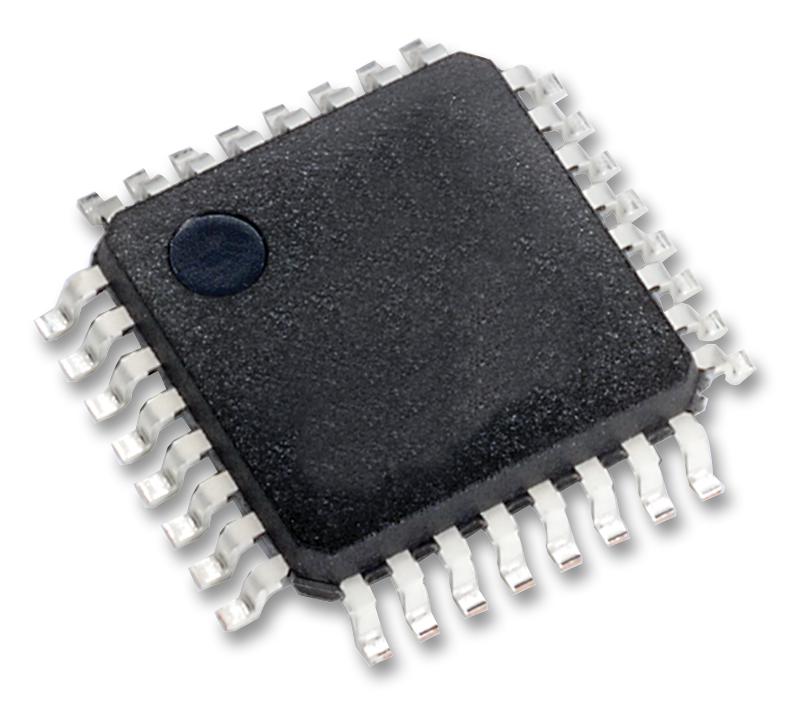

SILICON LABS - C8051F123-GQ - 8 Bit MCU, Mixed Signal, C8051 Family C8051F12x Series Microcontrollers, 100 MHz, 128 KB, 8 KB
- Product Range: C8051 Family C8051F12x Series Microcontrollers
- CPU Speed: 100MHz
- Program Memory Size: 128KB
- RAM Memory Size: 8KB
- No. of Pins: 64Pins
- MCU Case Style: TQFP
- No. of I/O's: 32I/O's
- Embedded Interface Type: I2C, SPI, UART
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- MCU Family: C8051
- MCU Series: C8051F12x
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- Clock Frequency: 100MHz
- Controller Family/Series: C8051F12x
- Flash Memory Size: 128KB
- MPU Core Size: 8bit
- Microprocessor/Controller Features: 2 UARTs, SMBus, SPI
- No. of ADC Inputs: 8
- No. of PWM Channels: 6
- No. of Timers: 5
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, DAC
- Program Memory Size: 128KB
- RAM Size: 8448Byte
- Supply Voltage Range: 3V to 3.6V
- Termination Type: Surface Mount Device
