C503B-RBN-CW0Z0AA1 LED, 5mm, Red Cree LED

CREE LEDUGS :C503B-RBN-CW0Z0AA1 Code de commande:1648994

Prix:
Prix ​​promotionnel€0,39

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (510 unité)

Documents et téléchargements

description

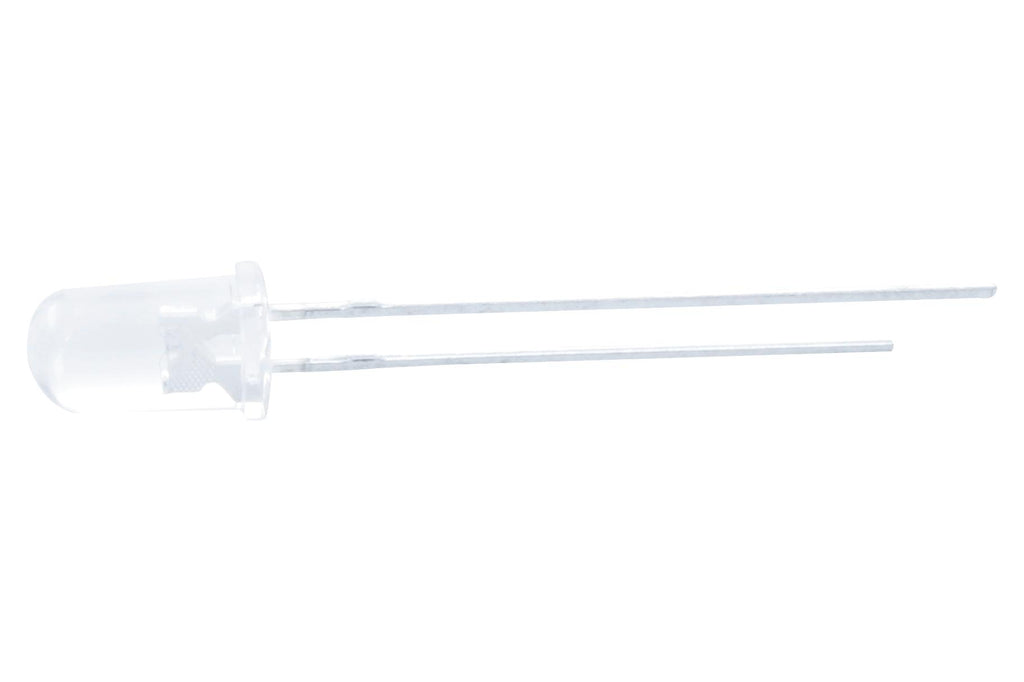

CREE LED - C503B-RBN-CW0Z0AA1 - LED, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 2.1 V, 630 nm

  • LED Colour: Red
  • LED Mounting: Through Hole
  • LED Case Size: T-1 3/4 (5mm)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 630nm
  • Luminous Intensity: 5cd
  • Viewing Angle: 23°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • Bulb Size: T-1 3/4 (5mm)
  • Dominant Wavelength: 624nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Standard
  • Lead Diameter: 0.5mm
  • Lead Length: 25mm
  • Lead Spacing: 2.54mm
  • Lens Diameter: 5mm
  • Lens Length: 8.8mm
  • Luminous Intensity Typ: 5000mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 95°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +95°C
