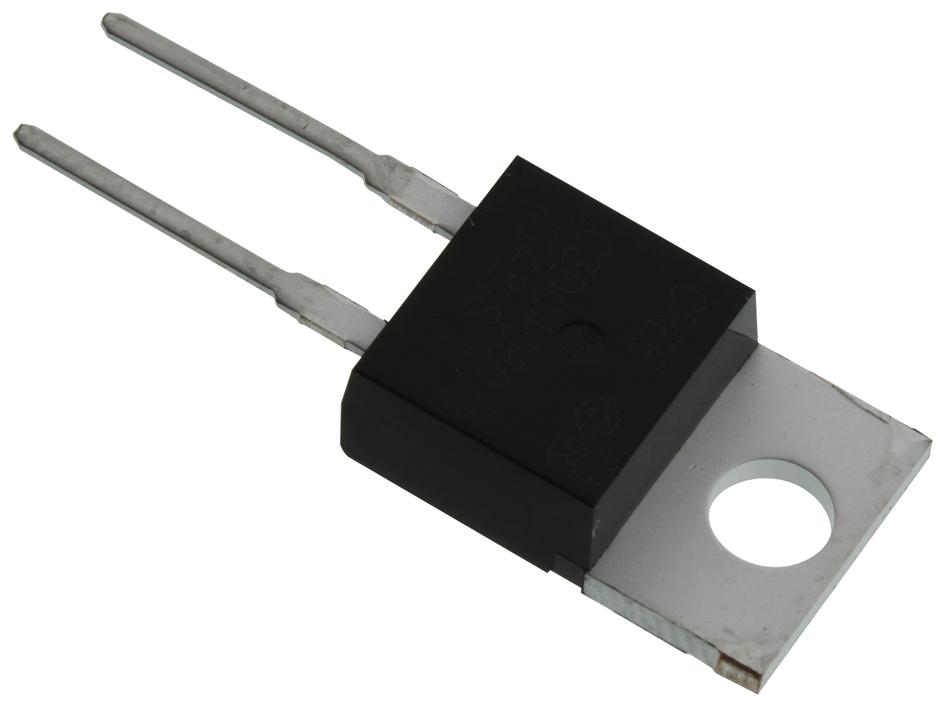

C3D06065A Diode, Schottky, 6a, 650V, TO-220 WOLFSPEED

WOLFSPEEDUGS :C3D06065A Code de commande:1864928

Prix:
Prix ​​promotionnel€7,50

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2350 unité)

Documents et téléchargements

description

WOLFSPEED - C3D06065A - Silicon Carbide Schottky Diode, Z-Rec 650V, Single, 650 V, 9 A, 15 nC, TO-220

  • Product Range: Z-Rec 650V Series
  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 650V
  • Continuous Forward Current If: 9A
  • Total Capacitive Charge Qc: 15nC
  • Diode Case Style: TO-220
  • No. of Pins: 2 Pin
  • Junction Temperature Tj Max: 175°C
  • Automotive Qualification Standard: -
  • Diode Type: SiC Schottky
  • Forward Current If(AV): 6A
  • Forward Surge Current Ifsm Max: 70A
  • Forward Voltage VF Max: 1.8V
  • No. of Pins: 2Pins
  • Operating Temperature Max: 175°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Semiconductor Technology: SiC
