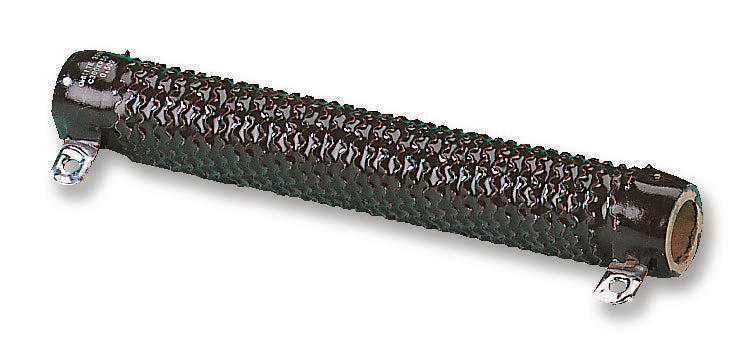

OHMITE - C300K10R - Resistor, 10 ohm, 280, 300 W, ± 10%, Solder Lug, 1 kV
- Resistance: 10ohm
- Product Range: 280 Series
- Power Rating: 300W
- Resistance Tolerance: ± 10%
- Resistor Terminals: Solder Lug
- Voltage Rating: 1kV
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 400ppm/°C
- SVHC: No SVHC (15-Jan-2018)
- Body Diameter: 28.58mm
- External Length / Height: 215.9mm
- No. of Pins: 2Pins
- Operating Temperature Max: 400°C
- Resistor Mounting: Through Hole
- Surge Power Rating: 3000W
- Surge Power Rating Time: 5s
- Temperature Coeff. +: 400ppm/°C
- Temperature Coeff. -: 400ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating VAC: 1000V
