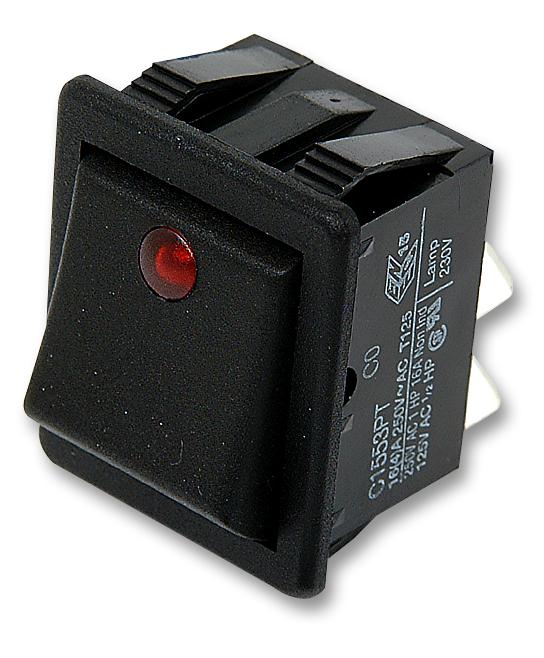

ARCOLECTRIC (BULGIN LIMITED) - C1553PTNAB - Rocker Switch, Off-On, DPST, Illuminated, Panel Mount, Black, 1550
- Illumination: Illuminated
- Contact Configuration: DPST
- Switch Operation: Off-On
- Actuator / Cap Colour: Black
- Switch Mounting: Panel
- Contact Current Max: 16A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Product Range: 1550 Series
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, ENEC, UL
- Bezel Height: 25mm
- Bezel Width: 30.2mm
- Colour: Red - Spot (Illumination)
- Contact Current AC Max: 10A
- Contact Current DC Max: 16A
- Contact Resistance: 10Mohm
- Contact Voltage AC Max: 250V
- External Depth: 16.2mm
- Illumination Colour: Red
- Insulation Resistance: 20Mohm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 125°C
- Operating Temperature Min: 0°C
- Panel Cutout Size: 22.3 x 28.2 mm
- Panel Cutout Width: 22.3mm
- Panel Cutout length: 28.2mm
- Tab Blade Thickness: 0.8mm
- Tab Width: 6.35mm
