description

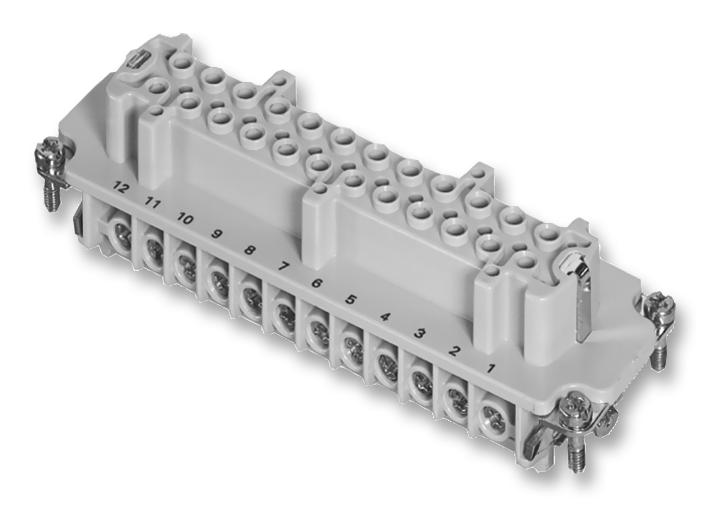

AMPHENOL SINE/TUCHEL - C146 10B024 102 1 - Heavy Duty Connector, Signal, Wire Protection, Heavy Mate E, Insert, 24+PE Contacts, E24
- Product Range: Heavy Mate E Series
- Heavy Duty Connector Type: Insert
- No. of Contacts: 24+PE Contacts
- Rectangular Shell Size: E24
- Gender: Receptacle
- Heavy Duty Contact Type: Screw Socket
- Current Rating: 16A
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: Cable Mount
- Contact Gender: Socket
- Contact Material: Brass
- Contact Plating: Silver Plated Contacts
- Contact Termination: Screw
- Contact Termination Type: Screw
- For Use With: C146 E24 Housings & Hoods
- Insert Type: Signal
- No. of Contacts: 25Contacts
- No. of Rows: 2 Row
- No. of Rows: 2Rows
- Voltage Rating: 500V
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 20AWG
