description

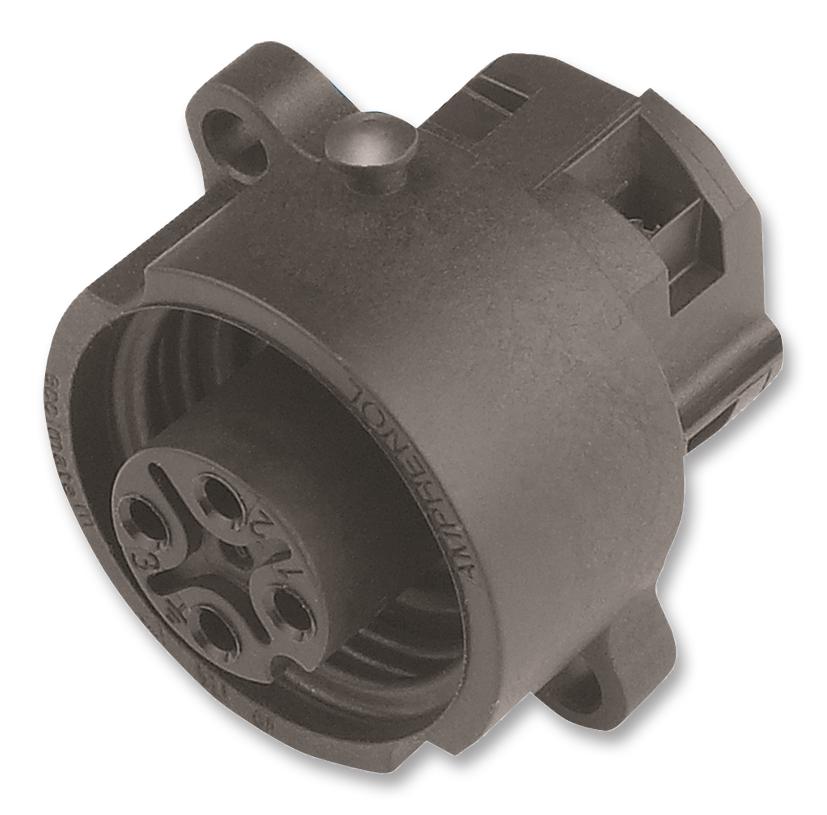

AMPHENOL SINE/TUCHEL - C016 30G006 200 12.. - Circular Connector, Ecomate C016 Series, Flange Mount Receptacle, 7 Contacts, Solder Socket
- Product Range: Ecomate C016 Series
- Circular Connector Shell Style: Flange Mount Receptacle
- No. of Contacts: 7Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Threaded
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: Gold
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, GERMANISCHER LLOYDS, SEV, UL, VDE
- Approval Category: DIN EN 60664-1 , DIN EN 60512-3-2, DIN EN 60512-3-1, DIN EN 60529
- Cable Diameter Max: 12.5mm
- Cable Diameter Min: 6mm
- Colour: Black
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 5mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 10A
- De-mating Force: 30N
- Degree of Pollution: 3
- Fixing Centres: 31mm
- Flammability Rating: UL94V-0
- Gender: Receptacle
- Housing: Polyamide 6.6/PA6
- IP / NEMA Rating: IP67
- Insulation Resistance: 10Mohm
- Mating Force: 15N
