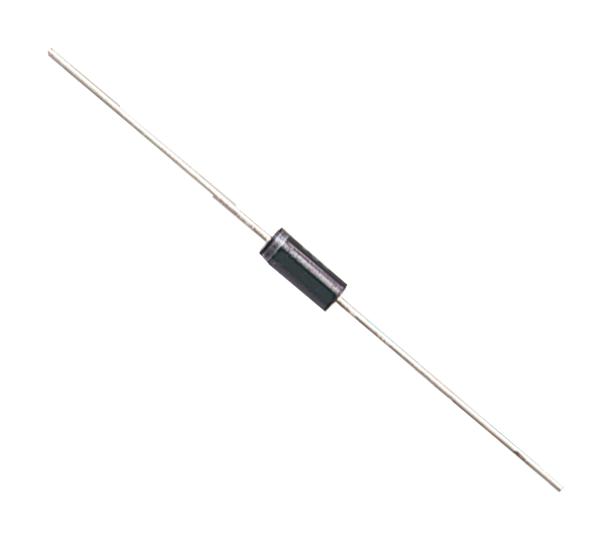

TAIWAN SEMICONDUCTOR - BZW04-15B. - TVS Diode, BZW04, Bidirectional, 15.3 V, 25.2 V, DO-41 (DO-204AL), 2 Pins
- Product Range: BZW04 Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 15.3V
- Clamping Voltage Vc Max: 25.2V
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Breakdown Voltage Min: 17.1V
- Breakdown Voltage Max: 18.9V
- Peak Pulse Power Dissipation: 400W
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Breakdown Voltage: 18.9V
- Breakdown Voltage Range: 17.1V to 18.9V
- Device Marking: BZW04-15B
- Diode Type: Bidirectional TVS
- Forward Surge Current Ifsm Max: 40A
- Peak Pulse Current Ippm: 16A
- Power Dissipation Pd: 1W
- Stand-off Voltage: 15.3V
- Termination Type: Axial Leaded
- Test Current: 1mA
