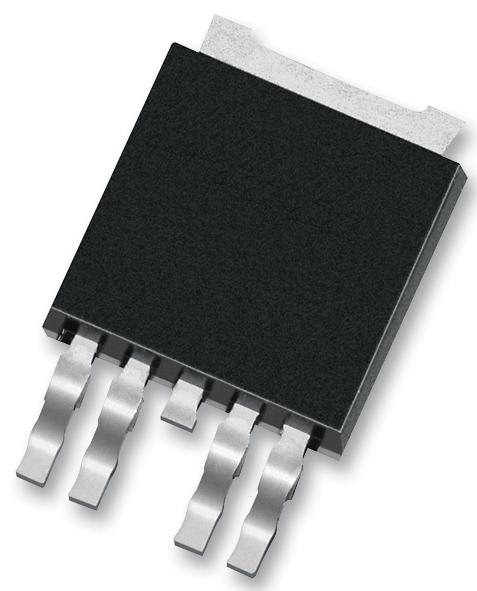

BTS5016SDAAUMA1 Ic, Smart High Side Pwr SW, TO252-5 INFINEON

INFINEONUGS :BTS5016SDAAUMA1 Code de commande:2215483

Prix:
Prix ​​promotionnel€4,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (21566 unité)

Documents et téléchargements

description

  • Power Load Switch Type: High Side
  • Input Voltage: 20V
  • Current Limit: 5.5A
  • On State Resistance: 0.021ohm
  • Distribution Switch Case Style: TO-252
  • No. of Pins: 5Pins
  • Thermal Protection: Yes
  • On / Enable Input Polarity: Active High
  • No. of Outputs: 1Outputs
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q100
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (27-Jun-2018)
  • Device Type: High Side
  • Driver Case Style: TO-252
  • Input Delay: 250µs
  • Module Configuration: N Channel
  • Operating Temperature Range: -40°C to +150°C
  • Output Delay: 250µs
  • Output Resistance: 0.016ohm
  • Peak Output Current: 75A
  • Supply Voltage Max: 20V
  • Supply Voltage Min: 5V
  • Supply Voltage Range: 5V to 20V
