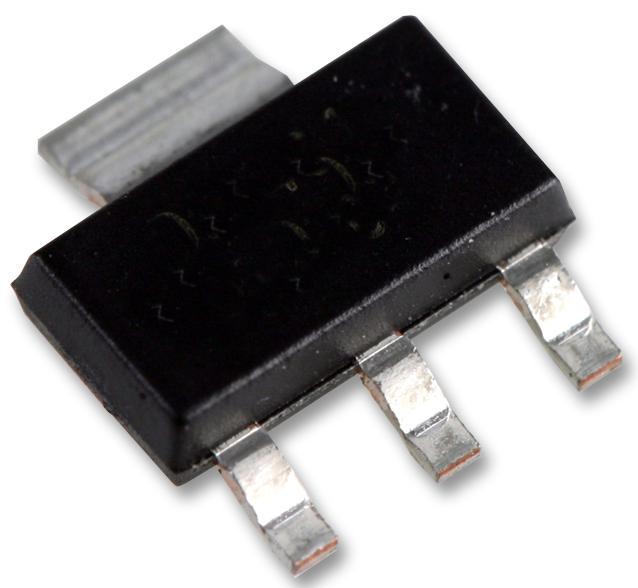

BTS4142NHUMA1 Ic, High Side Power Switch, SOT223-4 INFINEON

INFINEONUGS :BTS4142NHUMA1 Code de commande:2215475

Prix:
Prix ​​promotionnel€3,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1857 unité)

Documents et téléchargements

description

INFINEON - BTS4142NHUMA1 - Smart Power Switch, SIPMOS Technology, High Side, 1 Output, 2.2A, SOT-223-4

  • Power Load Switch Type: High Side
  • Input Voltage: 48V
  • Current Limit: 2.2A
  • On State Resistance: 0.2ohm
  • Distribution Switch Case Style: SOT-223
  • No. of Pins: 4Pins
  • Thermal Protection: Yes
  • On / Enable Input Polarity: Active High
  • No. of Outputs: 1Outputs
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q100
  • RoHS Phthalates Compliant: Yes
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (27-Jun-2018)
  • Device Type: High Side
  • Driver Case Style: SOT-223
  • Input Delay: 50µs
  • Module Configuration: N Channel
  • Operating Temperature Range: -40°C to +125°C
  • Output Delay: 75µs
  • Output Resistance: 0.15ohm
  • Peak Output Current: 3A
