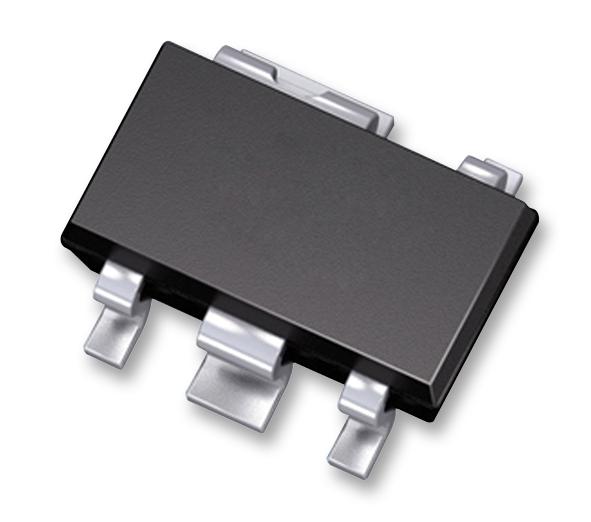

INFINEON - BTS3800SLHTSA1 - Smart Power Switch, Low Side, 1 Output, 0.75A, PG-SCT595-5
- Power Load Switch Type: Low Side
- Input Voltage: 5.5V
- Current Limit: 750mA
- On State Resistance: 0.8ohm
- Distribution Switch Case Style: SCT-595
- No. of Pins: 5Pins
- Thermal Protection: Yes
- On / Enable Input Polarity: -
- No. of Outputs: 1Outputs
- Operating Temperature Min: -40°C
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Device Type: Low Side
- Driver Case Style: SCT-595
- Input Delay: 3µs
- Module Configuration: N Channel
- Operating Temperature Range: -40°C to +150°C
- Output Delay: 3µs
- Output Resistance: 0.8ohm
- Peak Output Current: 520mA
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.7V
- Supply Voltage Range: 2.7V to 5.5V
