BTA25-600B Triac, 25A, 600v, RD-91 STMICROELECTRONICS

STMICROELECTRONICSUGS :BTA25-600B Code de commande:9801677

Prix:
Prix ​​promotionnel€11,10

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4455 unité)

Documents et téléchargements

description

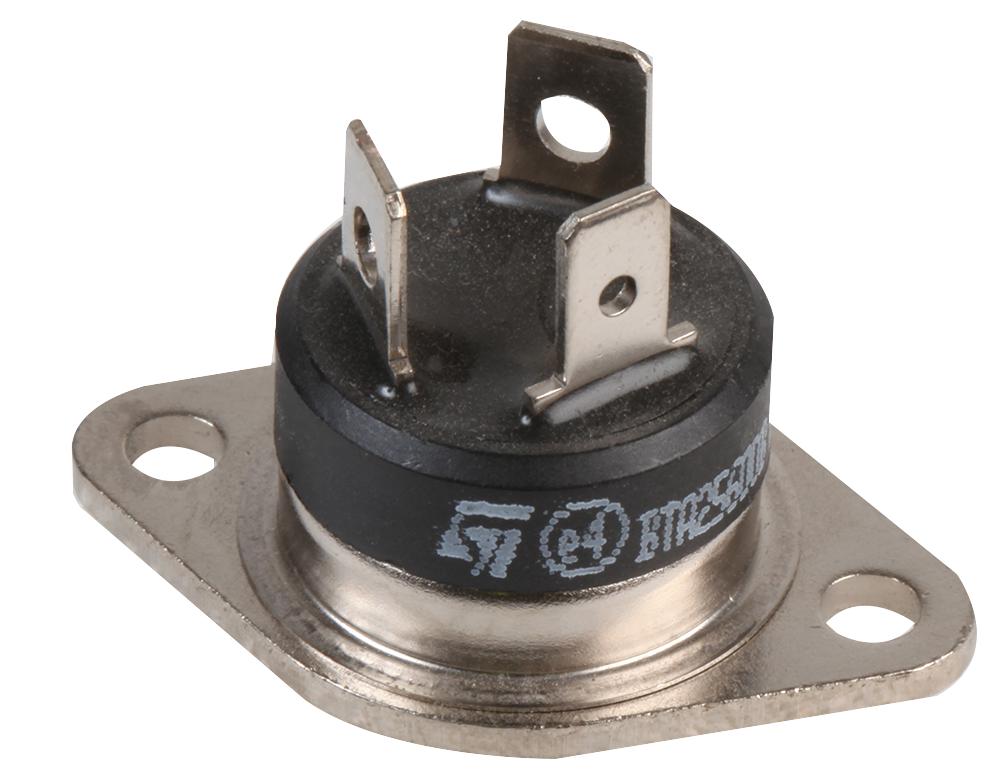

STMICROELECTRONICS - BTA25-600B - Triac, 600 V, 25 A, RD-91, 1.5 V, 250 A, 80 mA

  • Peak Repetitive Off-State Voltage, Vdrm: 600V
  • On State RMS Current IT(rms): 25A
  • Triac Case Style: RD-91
  • Gate Trigger Current Max (QI), Igt: 50mA
  • Gate Trigger Voltage Max Vgt: 1.5V
  • Peak Gate Power: 1W
  • Peak Non Rep Surge Current Itsm 50Hz: 250A
  • Holding Current Max Ih: 80mA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 125°C
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Current Itsm: 260A
  • Current Itsm @ 60Hz: 260A
  • Current t2+g-: 50mA
  • Current t2-g+: 100mA
  • Current t2-g-: 50mA
  • Device Marking: BTA25-600B
  • Gate Trigger Current Igt (Q1) t2+g+: 50mA
  • Gate Trigger Current Max, Igt: 50mA
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Thyristor Case: RD-91
  • Thyristor Type: Triac
