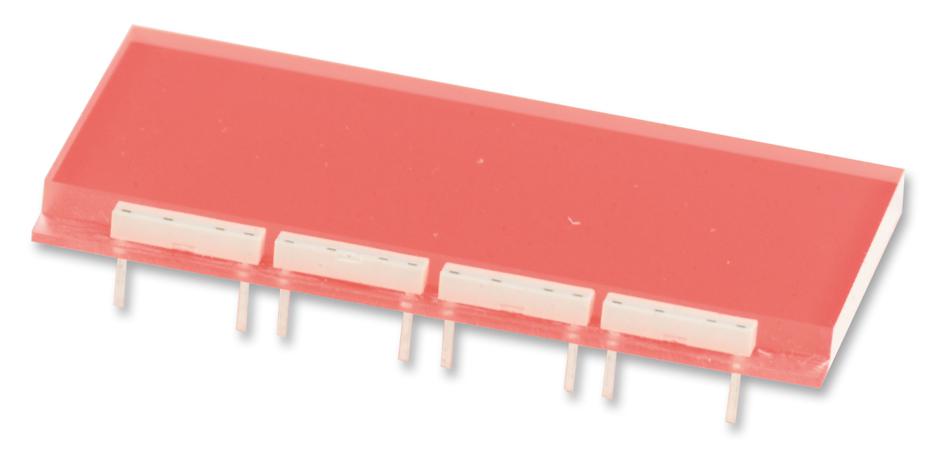

LED TECHNOLOGY - BRURS3804TE - LED Bar Graph Array, Red, 20 mA, 3.4 V, 150 mcd, 4 LEDs, 20.8mm x 48.7mm
- LED Colour: Red
- Forward Current If: 20mA
- Forward Voltage: 3.4V
- Luminous Intensity: 150mcd
- No. of LEDs: 4LEDs
- Display Size: 20.8mm x 48.7mm
- Product Range: -
- SVHC: No SVHC (15-Jun-2015)
- Active Area Depth: 20.8mm
- Active Area Width: 48.7mm
- External Depth: 23.3mm
- External Length / Height: 3mm
- External Width: 48.7mm
- Forward Voltage VF Max: 4.4V
- Height: 3mm
- LED Configuration: Backlight
- Luminous Intensity Typ: 150mcd
- Material: GaAIAs on GaAs
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +85°C
- Peak Forward Current: 30mA
- Peak Wavelength: 660nm
- Wavelength Typ: 660nm
