BG 5924.48 AC/DC 24V Relay, Safety, 3NO, SPST-NC, 230VAC, 5A DOLD

DOLDUGS :BG 5924.48 AC/DC 24V Code de commande:9514503

Prix:
Prix ​​promotionnel€367,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5 unité)

Documents et téléchargements

description

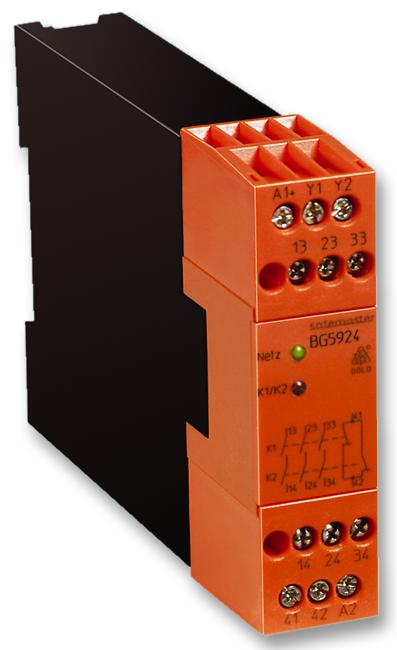

DOLD - BG 5924.48 AC/DC 24V - Safety Relay, 24 V, 3PST-NO, SPST-NC, BG 5924, DIN Rail, 5 A, Screw

  • Coil Voltage: 24V
  • Contact Configuration: 3PST-NO, SPST-NC
  • Product Range: BG 5924 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 5A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 230V
  • Contact Voltage DC Nom: -
  • Contact Material: -
  • IP Rating: IP20, IP40
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: BG
  • Coil Voltage VAC Nom: 24V
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 8A
  • Contact Current DC Max: 8A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 250V
  • External Depth: 121mm
  • External Height: 84mm
  • External Length / Height: 84mm
  • External Width: 22.5mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -15°C
  • Switch Current Max: 7A
  • Switching Current Max: 7A
  • Type: 0050982
