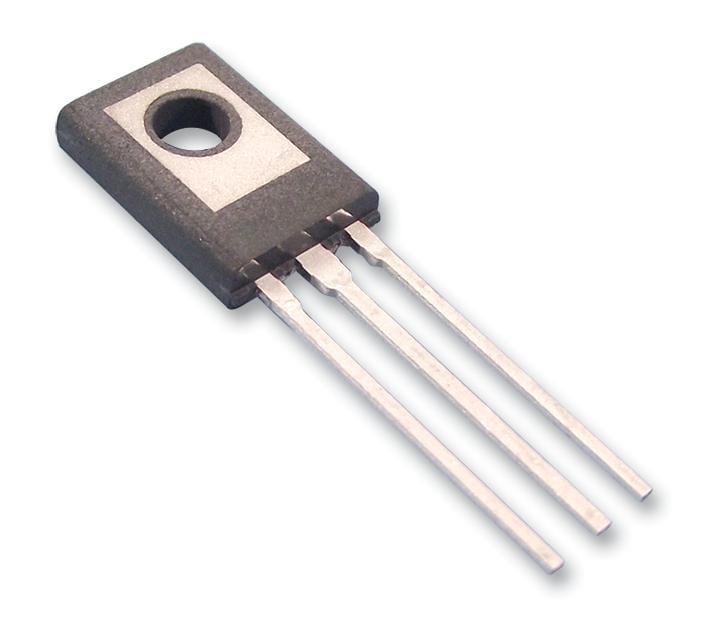

BD139G Transistor, NPN, TO-225AA ONSEMI

ONSEMIUGS :BD139G Code de commande:9556052

Prix:
Prix ​​promotionnel€1,34

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2504 unité)

Documents et téléchargements

description

ONSEMI - BD139G - Bipolar (BJT) Single Transistor, General Purpose, NPN, 80 V, 1.5 A, 1.25 W, TO-225AA, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 80V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 1.25W
  • DC Collector Current: 1.5A
  • DC Current Gain hFE: 40hFE
  • Transistor Case Style: TO-225AA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Av Current Ic: 1.5A
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 1.5A
  • Current Ic Continuous a Max: 1.5A
  • Current Ic hFE: 150mA
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 40
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Ptot Max: 12.5W
  • Voltage Vcbo: 100V
