BD 5935.48 DC 24V Relay, Safety, 3NO, SPST-NC, 250VAC, 5A DOLD

DOLDUGS :BD 5935.48 DC 24V Code de commande:9514376

Prix:
Prix ​​promotionnel€412,98

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

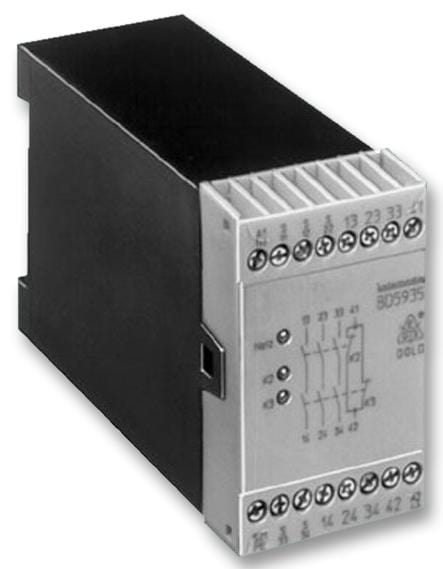

DOLD - BD 5935.48 DC 24V - Safety Relay, 24 VDC, 3PST-NO, SPST-NC, BD 5935, DIN Rail, 5 A, Screw

  • Coil Voltage: 24VDC
  • Contact Configuration: 3PST-NO, SPST-NC
  • Product Range: BD 5935 Series
  • Relay Mounting: DIN Rail
  • Contact Current: 5A
  • Relay Terminals: Screw
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Material: -
  • IP Rating: IP20, IP40
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: BG, CSA, UL
  • Coil Voltage VAC Nom: 230V
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 230V
  • External Depth: 121mm
  • External Height: 74mm
  • External Length / Height: 74mm
  • External Width: 45mm
  • Operating Temperature Max: 55°C
  • Operating Temperature Min: -15°C
  • Supply Frequency: 50Hz
  • Switch Current Max: 10A
  • Switching Current Max: 10A
  • Type: 0045456
