BCV61C,215 Transistor, Dual, NPN, Sot-143 NEXPERIA

NEXPERIAUGS :BCV61C,215 Code de commande:8734917

Prix:
Prix ​​promotionnel€0,64

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3152 unité)

Documents et téléchargements

description

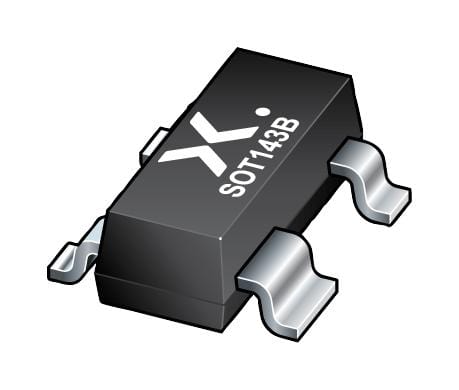

NEXPERIA - BCV61C,215 - Bipolar Transistor Array, NPN, 30 V, 100 mA, 250 mW, 420 hFE, SOT-143

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 30V
  • Power Dissipation Pd: 250mW
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 420hFE
  • Transistor Case Style: SOT-143
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 600mV
  • Continuous Collector Current Ic Max: 100mA
  • Current Ic @ Vce Sat: 100mA
  • Current Ic Continuous a Max: 100mA
  • Current Ic hFE: 100µA
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 100MHz
  • Hfe Min: 100
  • Module Configuration: Dual
  • No. of Transistors: 2
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Ptot Max: 250mW
  • SMD Marking: 1Kp
  • Voltage Vcbo: 30V
