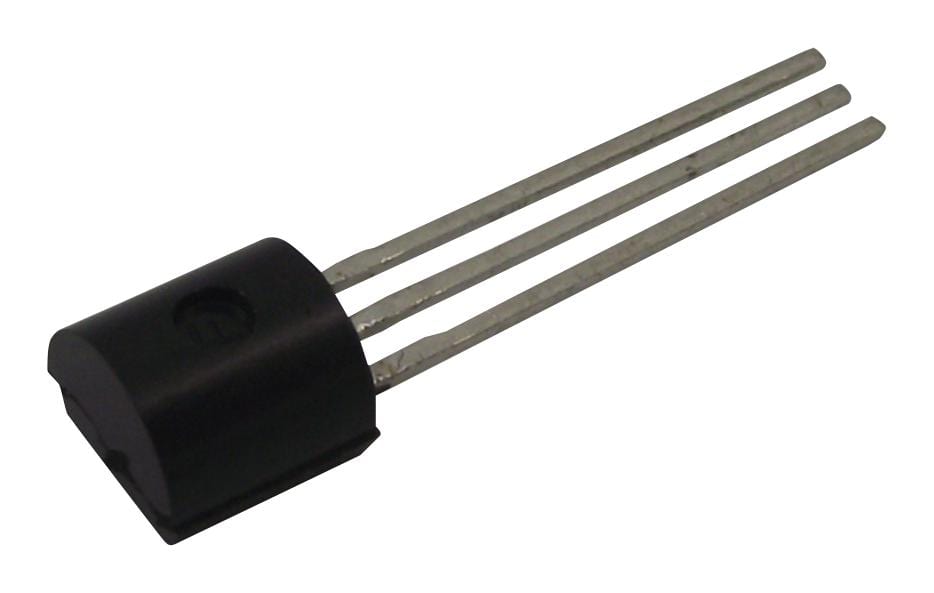

MULTICOMP PRO - BC635 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 45 V, 1 A, 800 mW, TO-92, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 800mW
- DC Collector Current: 1A
- DC Current Gain hFE: 100hFE
- Transistor Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 500mV
- Continuous Collector Current Ic Max: 1A
- Current Ic @ Vce Sat: 500mA
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 150mA
- Gain Bandwidth ft Min: 100MHz
- Gain Bandwidth ft Typ: 200MHz
- Hfe Min: 40
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: h
- Power Dissipation Ptot Max: 830mW
- Termination Type: Through Hole
- Voltage Vcbo: 45V
