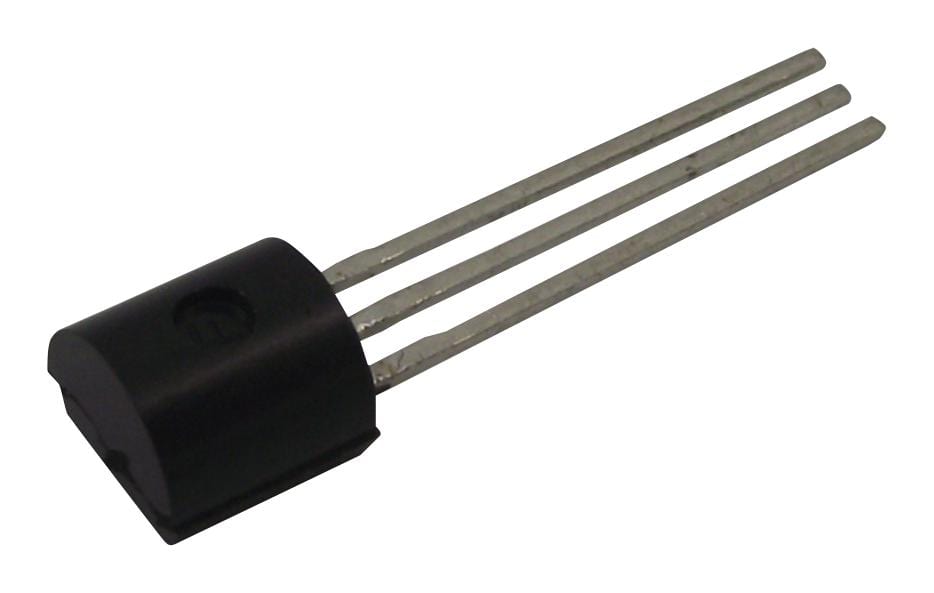

MULTICOMP PRO - BC549C - Bipolar (BJT) Single Transistor, NPN, 30 V, 100 mA, 625 mW, TO-92, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 30V
- Transition Frequency ft: 250MHz
- Power Dissipation Pd: 625mW
- DC Collector Current: 100mA
- DC Current Gain hFE: 500hFE
- Transistor Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 600mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Device Marking: BC549C
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 300Hz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 420
- No. of Transistors: 1
- Noise Factor Max: 1.4dB
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: f
- Power Dissipation Ptot Max: 500mW
- Termination Type: Through Hole
- Voltage Vcbo: 30V
