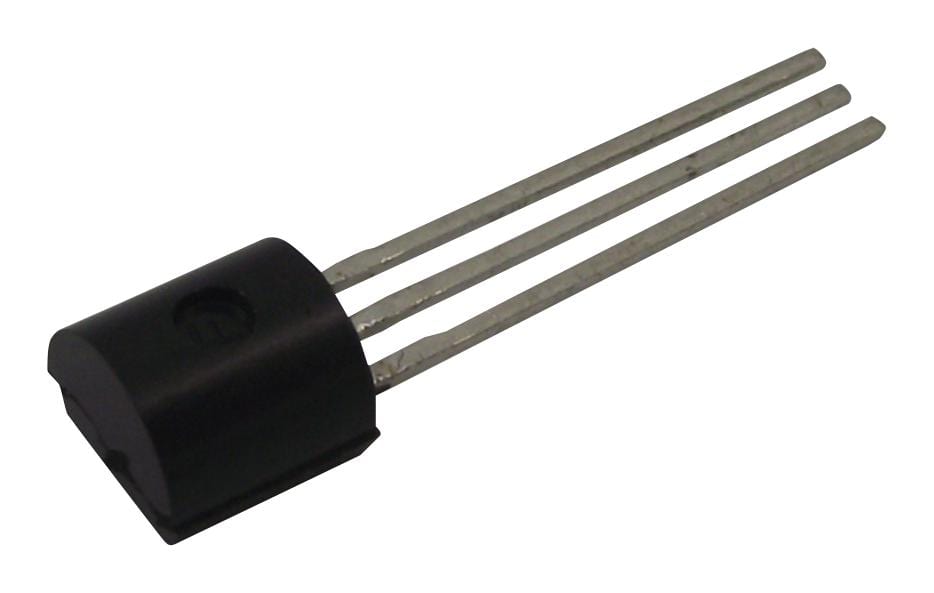

BC237B Transistor, NPN, TO-92 multicomp Pro

MULTICOMP PROUGS :BC237B Code de commande:1574377

Prix:
Prix ​​promotionnel€0,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (24332 unité)

Documents et téléchargements

description

MULTICOMP PRO - BC237B - Bipolar (BJT) Single Transistor, NPN, 45 V, 100 mA, 350 mW, TO-92, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: 200MHz
  • Power Dissipation Pd: 350mW
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 290hFE
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 600mV
  • Continuous Collector Current Ic Max: 100mA
  • Current Ic Continuous a Max: 100mA
  • Current Ic hFE: 2mA
  • Gain Bandwidth ft Min: 200MHz
  • Gain Bandwidth ft Typ: 200MHz
  • Hfe Min: 200
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Pin Configuration: d
  • Power Dissipation Ptot Max: 350mW
  • Termination Type: Through Hole
  • Voltage Vcbo: 50V
