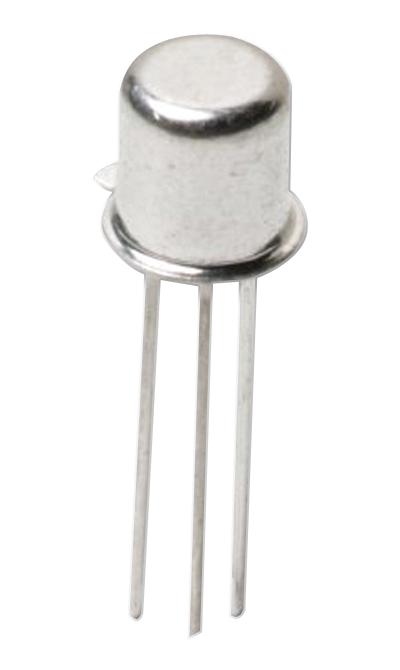

BC177 Transistor, PNP, TO-18 multicomp Pro

MULTICOMP PROUGS :BC177 Code de commande:9206825

Prix:
Prix ​​promotionnel€2,05

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9946 unité)

Documents et téléchargements

description

MULTICOMP PRO - BC177 - Bipolar (BJT) Single Transistor, General Purpose, PNP, 45 V, 200 mA, 600 mW, TO-18, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: 200MHz
  • Power Dissipation Pd: 600mW
  • DC Collector Current: 200mA
  • DC Current Gain hFE: 120hFE
  • Transistor Case Style: TO-18
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): -200mV
  • Continuous Collector Current Ic Max: 100mA
  • Current Ic Continuous a Max: 100mA
  • Current Ic hFE: 2mA
  • Gain Bandwidth ft Min: 200MHz
  • Gain Bandwidth ft Typ: 300MHz
  • Hfe Min: 120
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +200°C
  • Pin Configuration: a
  • Power Dissipation Ptot Max: 600mW
  • Voltage Vcbo: 50V
