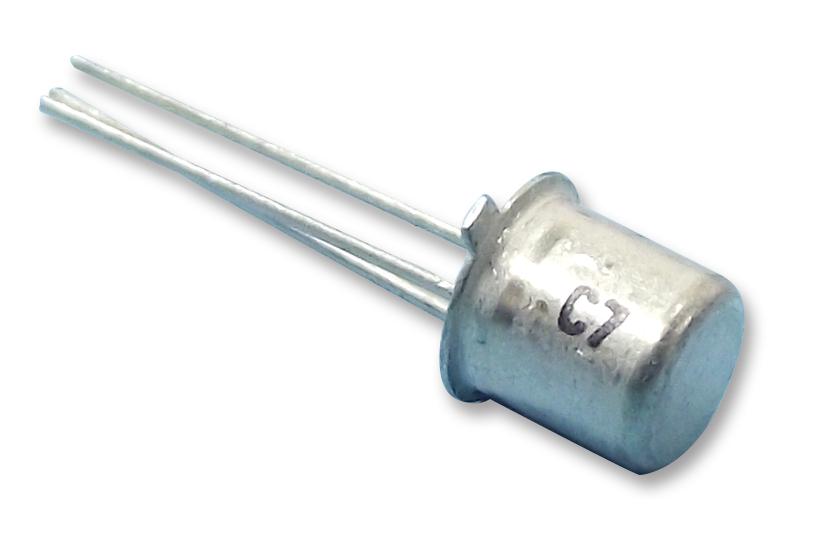

MULTICOMP PRO - BC109 - Bipolar (BJT) Single Transistor, General Purpose Amplifiers/Switches, NPN, 25 V, 200 mA, 600 mW
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 25V
- Transition Frequency ft: 150MHz
- Power Dissipation Pd: 600mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 240hFE
- Transistor Case Style: TO-18
- No. of Pins: 3Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 250mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 150MHz
- Gain Bandwidth ft Typ: 150MHz
- Hfe Min: 200
- No. of Transistors: 1
- Noise Factor Max: 4dB
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Pin Configuration: a
- Power Dissipation Ptot Max: 600mW
- Voltage Vcbo: 30V
