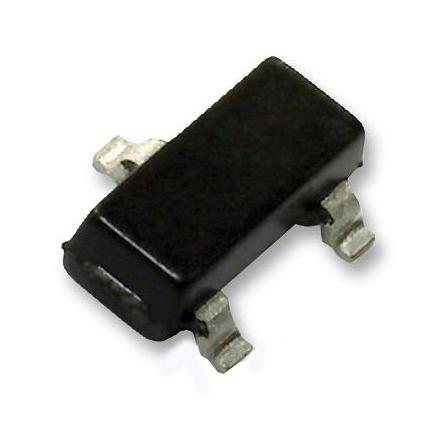

ONSEMI - BAW56LT1G - Small Signal Diode, Switching, Dual Common Anode, 70 V, 150 mA, 1.25 V, 6 ns, 500 mA
- Diode Configuration: Dual Common Anode
- Repetitive Reverse Voltage Vrrm Max: 70V
- Forward Current If(AV): 150mA
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 6ns
- Forward Surge Current Ifsm Max: 500mA
- Operating Temperature Max: 150°C
- Diode Case Style: SOT-23
- No. of Pins: 3Pins
- Product Range: BAW56 Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (27-Jun-2018)
- Current If @ Vf: 150mA
- Current Ifsm: 4A
- Device Marking: BAW56
- Diode Type: Ultrafast Recovery
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pin Configuration: 1(K1), 2(K2), 3(A1+A2)
- Power Dissipation Ptot Max: 225mW
- Reverse Recovery Time trr Typ: 6ns
- Reverse Voltage Vr Max: 70V
- Termination Type: Surface Mount Device
