NEXPERIA - BAV99W,115 - Small Signal Diode, Dual Series, 100 V, 150 mA, 1.25 V, 4 ns, 4 A
- Diode Configuration: Dual Series
- Repetitive Reverse Voltage Vrrm Max: 100V
- Forward Current If(AV): 150mA
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 4ns
- Forward Surge Current Ifsm Max: 4A
- Operating Temperature Max: 150°C

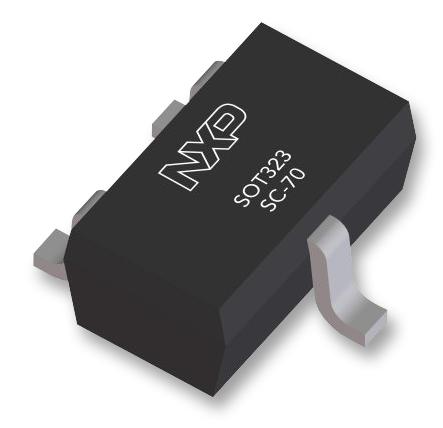

- Diode Case Style: SOT-323
- No. of Pins: 3Pins
- Product Range: BAV99 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Application Code: High Speed
- Current If @ Vf: 150mA
- Current Ifsm: 4A
- Current Ir Max: 30nA
- Forward Current If Max: 130mA
- Forward Voltage: 1.25V
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Peak Forward Current: 500mA
- Pin Configuration: 1A1,2K2,3(K1+A2)
- Power Dissipation Ptot Max: 200W
- Reverse Recovery Time trr Typ: 4ns
- Reverse Voltage Vr Max: 75V
- SMD Marking: A7
- Termination Type: Surface Mount Device
