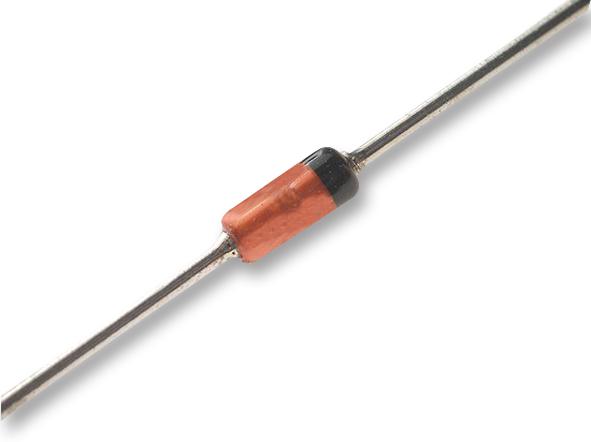

BAT48 Diode, Schottky, Small Signal STMICROELECTRONICS

STMICROELECTRONICSUGS :BAT48 Code de commande:9801472

Prix:
Prix ​​promotionnel€0,63

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (58479 unité)

Documents et téléchargements

description

STMICROELECTRONICS - BAT48 - Small Signal Schottky Diode, Single, 40 V, 350 mA, 400 mV, 7.5 A, 125 °C

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 40V
  • Forward Current If(AV): 350mA
  • Forward Voltage VF Max: 400mV
  • Forward Surge Current Ifsm Max: 7.5A
  • Operating Temperature Max: 125°C
  • Diode Case Style: DO-35
  • No. of Pins: 2Pins
  • Product Range: BAT48 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (17-Dec-2015)
  • Alternate Case Style: SOD-27
  • Current If @ Vf: 200mA
  • Current Ifsm: 7.5A
  • Device Marking: BAT48
  • Diode Type: Schottky
  • External Diameter: 1.85mm
  • External Length / Height: 4.25mm
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
