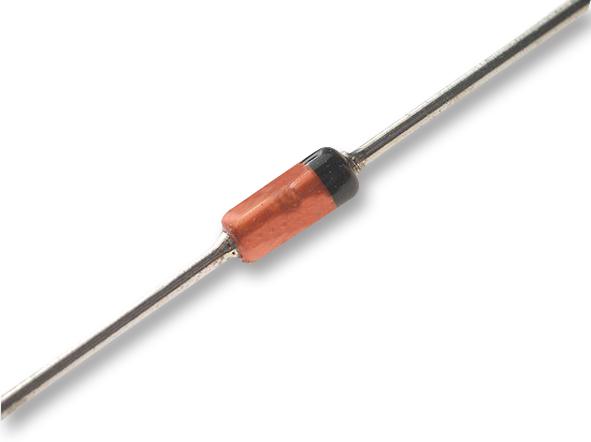

BAT42 Diode, Schottky, Small Signal STMICROELECTRONICS

STMICROELECTRONICSUGS :BAT42 Code de commande:9801430

Prix:
Prix ​​promotionnel€0,82

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (48901 unité)

Documents et téléchargements

description

STMICROELECTRONICS - BAT42 - Small Signal Schottky Diode, Single, 30 V, 200 mA, 400 mV, 4 A, 125 °C

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 30V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 400mV
  • Forward Surge Current Ifsm Max: 4A
  • Operating Temperature Max: 125°C
  • Diode Case Style: DO-35
  • No. of Pins: 2Pins
  • Product Range: BAT42 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (17-Dec-2015)
  • Alternate Case Style: SOD-27
  • Current If @ Vf: 10mA
  • Current Ifsm: 4A
  • Device Marking: BAT42
  • Diode Type: Schottky
  • External Diameter: 1.85mm
  • External Length / Height: 4.25mm
  • Forward Voltage: 400mV
  • Junction Temperature Tj Max: 125°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
  • Reverse Recovery Time trr Max: 5ns
