BAT41 Diode, Schottky, Small Signal STMICROELECTRONICS

STMICROELECTRONICSUGS :BAT41 Code de commande:9801421

Prix:
Prix ​​promotionnel€0,51

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9079 unité)

Documents et téléchargements

description

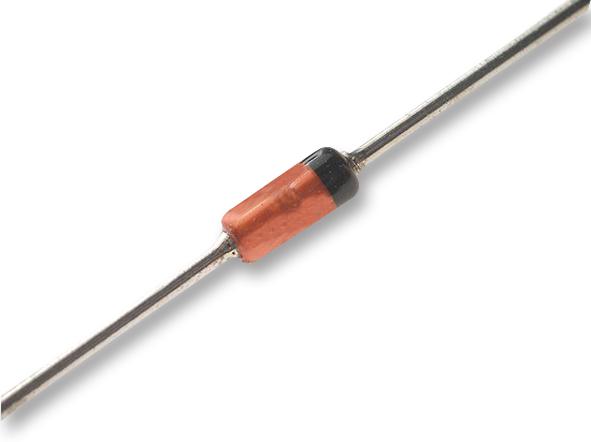

STMICROELECTRONICS - BAT41 - Small Signal Schottky Diode, Single, 100 V, 100 mA, 450 mV, 750 mA, 125 °C

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 100mA
  • Forward Voltage VF Max: 450mV
  • Forward Surge Current Ifsm Max: 750mA
  • Operating Temperature Max: 125°C
  • Diode Case Style: DO-35
  • No. of Pins: 2Pins
  • Product Range: BAT41 Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (17-Dec-2015)
  • Alternate Case Style: SOD-27
  • Current If @ Vf: 1mA
  • Current Ifsm: 1A
  • Device Marking: BAT41
  • Diode Type: Schottky
  • External Diameter: 1.85mm
  • External Length / Height: 4.25mm
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +125°C
