BAS16WT1G Diode, Signal, 75V, SC70, Full Reel ONSEMI

ONSEMIUGS :BAS16WT1G Code de commande:2440766

Prix:
Prix ​​promotionnel€0,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

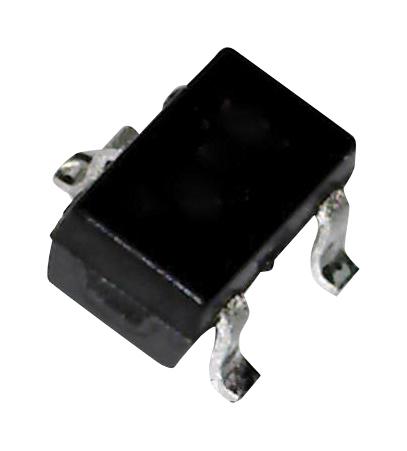

ONSEMI - BAS16WT1G - Small Signal Diode, Single, 75 V, 200 mA, 1.25 V, 6 ns, 500 mA

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 75V
  • Forward Current If(AV): 200mA
  • Forward Voltage VF Max: 1.25V
  • Reverse Recovery Time trr Max: 6ns
  • Forward Surge Current Ifsm Max: 500mA
  • Operating Temperature Max: 150°C
  • Diode Case Style: SC-70
  • No. of Pins: 3Pins
  • Product Range: BAS16 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: No SVHC (27-Jun-2018)
  • Breakdown Voltage Max: 75V
  • Diode Type: Switching
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Reverse Recovery Time trr Typ: 6ns
  • Termination Type: Surface Mount Device
