B84112G0000B116 Filter, 16A, SIFI G EPCOS

EPCOSUGS :B84112G0000B116 Code de commande:1467067

Prix:
Prix ​​promotionnel€29,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (366 unité)

Documents et téléchargements

description

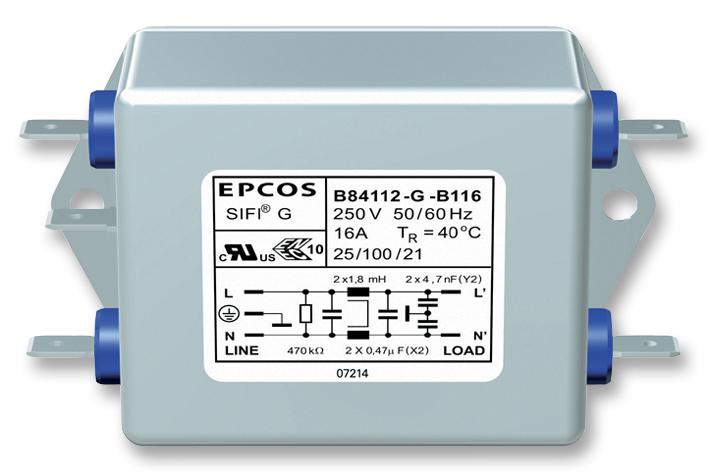

EPCOS - B84112G0000B116 - Power Line Filter, Chassis, General Purpose, 250 VAC, 16 A, Single Phase, 1 Stage, Chassis Mount

  • Current Rating: 16A
  • Voltage Rating: 250V
  • Filter Type: Standard
  • Filter Terminals: Quick Connect
  • Inductance Min: 1.8mH
  • Capacitance: 0.47µF
  • Leakage Current Max: 500µA
  • Product Range: -
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitance X: 0.47µF
  • Capacitance Y: 4700pF
  • External Depth: 29mm
  • External Length / Height: 89.5mm
  • External Width: 52mm
  • Height: 89.5mm
  • Inductance L1: 1.8mH
  • Inductance L2: 1.8mH
  • Leakage Current: 500µA
  • No. of Inductors: 2
  • No. of Phases: Single Phase
  • No. of X Type Capacitors: 2
  • No. of Y Type Capacitors: 2
  • Voltage Rating VAC: 250V
