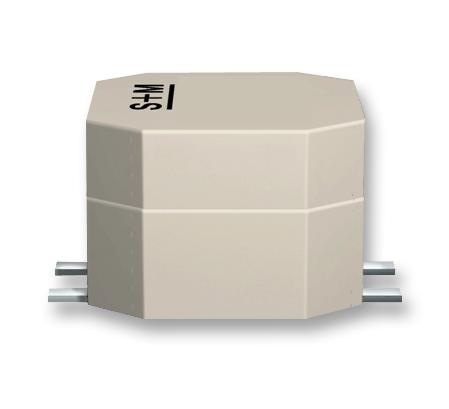

B82790C0105N240 Inductor, 1mH, -30%+50%, 500mA, EPCOS

EPCOSUGS :B82790C0105N240 Code de commande:9752277

Prix:
Prix ​​promotionnel€3,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (224 unité)

Documents et téléchargements

description

EPCOS - B82790C0105N240 - Choke, Common Mode, 1 mH, B82790C0 Series, 500 mA, 7.1mm x 6mm x 4.9mm

  • Rated Current: 500mA
  • Inductance: 1mH
  • Product Range: B82790C0 Series
  • Impedance: -
  • Common Mode Filter Case: 7.1mm x 6mm x 4.9mm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Climatic Category: 40/125/56
  • Core Material: Ferrite
  • DC Current Max: 500mA
  • DC Current Rating: 500mA
  • DC Resistance Max: 0.2ohm
  • Flammability Rating: UL94V-0
  • Inductance Min: 0.2µH
  • Inductance Tolerance: -30% to +50%
  • Inductor Case Style: SMD
  • Inductor Type: Common / Asymmetrical
  • No. of Pins: 4Pins
  • Voltage Rating: 80V
  • Voltage Rating V DC: 80V
  • Voltage Rating VAC: 42V
