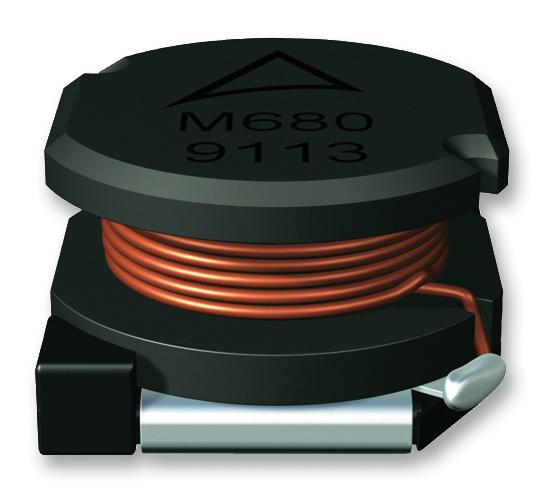

EPCOS - B82475M1334K000 - Wirewound Inductor, 330 µH, 1.15 ohm, 520 mA, 10.4mm x 10mm x 5.8mm, B82475M1
- Inductance: 330µH
- RMS Current (Irms): 520mA
- Inductor Construction: Wirewound
- Saturation Current (Isat): 550mA
- Product Range: B82475M1 Series
- Power Inductor Case: 10.4mm x 10mm x 5.8mm
- DC Resistance Max: 1.15ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (27-Jun-2018)
