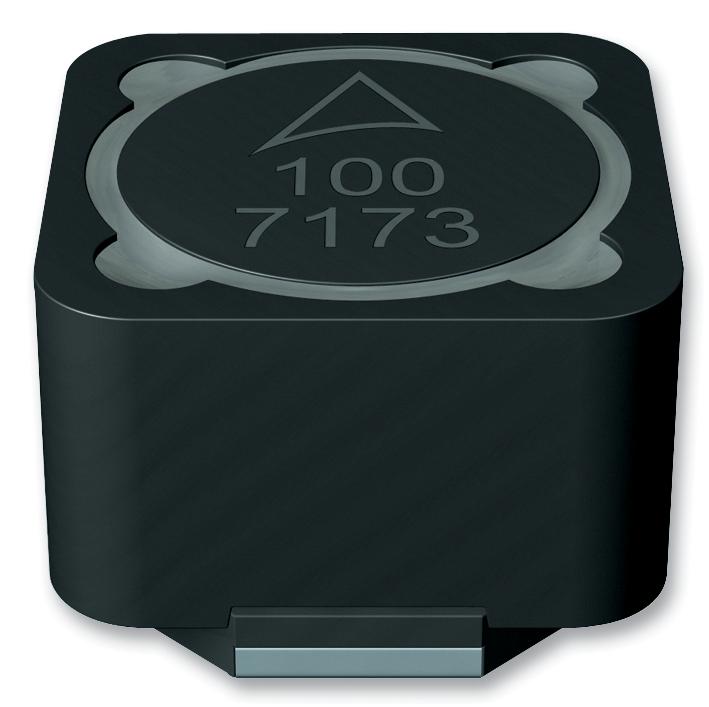

EPCOS - B82464P4333M000 - Wirewound Inductor, 33 µH, 0.075 ohm, 1.85 A, 10.4mm x 10.4mm x 4.8mm, B82464P4
- Inductance: 33µH
- RMS Current (Irms): 1.85A
- Inductor Construction: Wirewound
- Saturation Current (Isat): 2.1A
- Product Range: B82464P4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 0.075ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q200
- External Depth: 4.8mm
- External Length / Height: 10.4mm
- External Width: 10.4mm
- Height: 10.4mm
