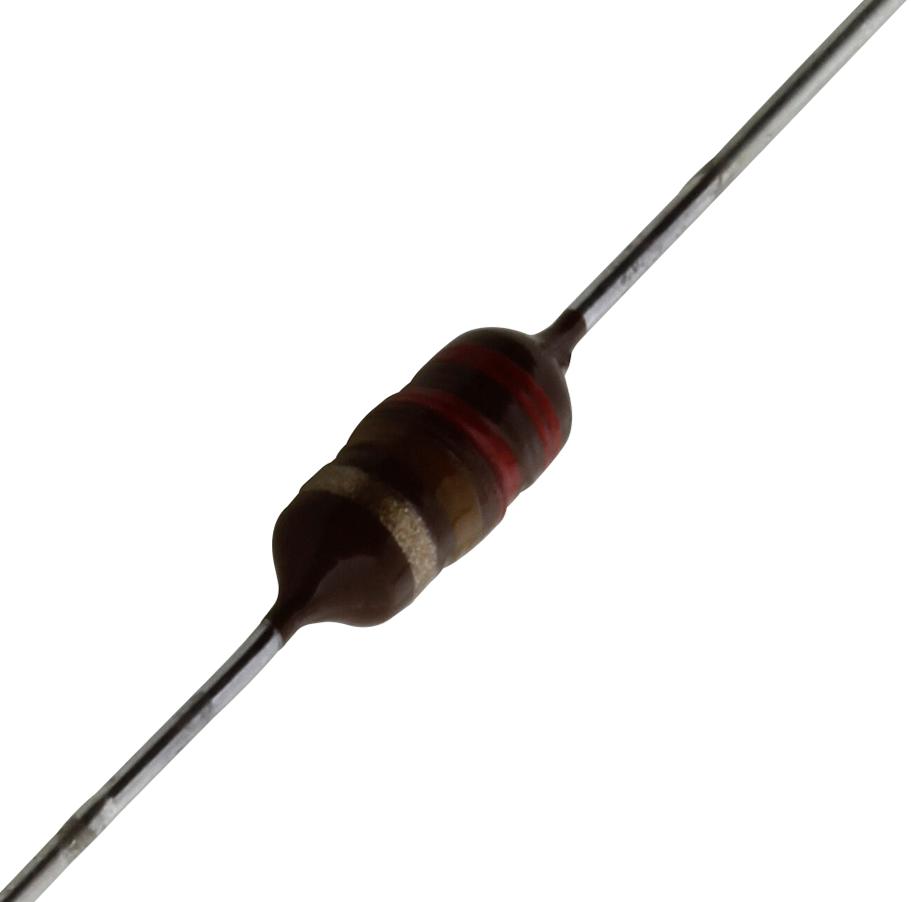

EPCOS - B78108S1105J000 - RF Choke, B78108S BC, 1 mH, 130 mA, 14 ohm, ± 5%, 1.6 MHz
- Product Range: B78108S BC Series
- Inductance: 1mH
- DC Current Rating: 130mA
- DC Resistance Max: 14ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.6MHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 4mm
- Core Material: Ferrite
- Current Rating: 130mA
- External Length / Height: 9.2mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Q Factor: 50
- Q Test Frequency: 252kHz
- Tolerance +: 5%
- Tolerance -: 5%
