description

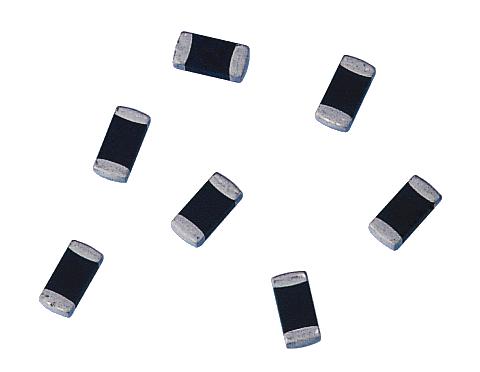

EPCOS - B72530T0200K062 - TVS Varistor, 20 V, 26 V, 54 V, 1210 [3225 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 20V
- Voltage Rating V DC: 26V
- Product Range: -
- Clamping Voltage Vc Max: 54V
- Varistor Case Style: 1210 [3225 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 400A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 1.9J
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Capacitance: 1500pF
- Clamping Current Max: 2.5A
- Clamping Voltage: 54V
- Clamping Voltage @ 8/20µs Max: 54V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 400A
- Power Dissipation Ptot Max: 0.01W
- Suppressor Type: Varistor
- Surge Current: 400A
- Transient Energy: 1.9J
- Varistor Voltage: 33V
- Varistor Voltage @ 1mA: 29.7V
- Varistor Voltage @ 1mA Max: 36.3V
- Varistor Voltage Tolerance +: 10%
- Varistor Voltage Tolerance -: 10%
