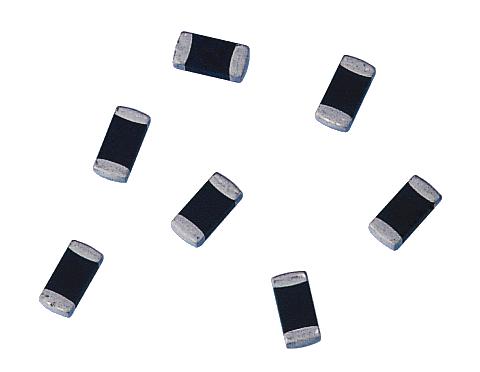

EPCOS - B72520T0140K062 - TVS Varistor, 14 V, 18 V, 38 V, 1206 [3216 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 14V
- Voltage Rating V DC: 18V
- Product Range: -
- Clamping Voltage Vc Max: 38V
- Varistor Case Style: 1206 [3216 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 200A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 500mJ
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Capacitance: 700pF
- Clamping Current Max: 1A
- Clamping Voltage: 38V
- Clamping Voltage @ 8/20µs Max: 38V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 200A
- Power Dissipation Ptot Max: 0.008W
- Suppressor Type: Varistor
- Surge Current: 200A
- Transient Energy: 0.5J
- Varistor Voltage: 22V
- Varistor Voltage @ 1mA: 19.8V
- Varistor Voltage @ 1mA Max: 24.2V
- Varistor Voltage Tolerance +: 10%
- Varistor Voltage Tolerance -: 10%
