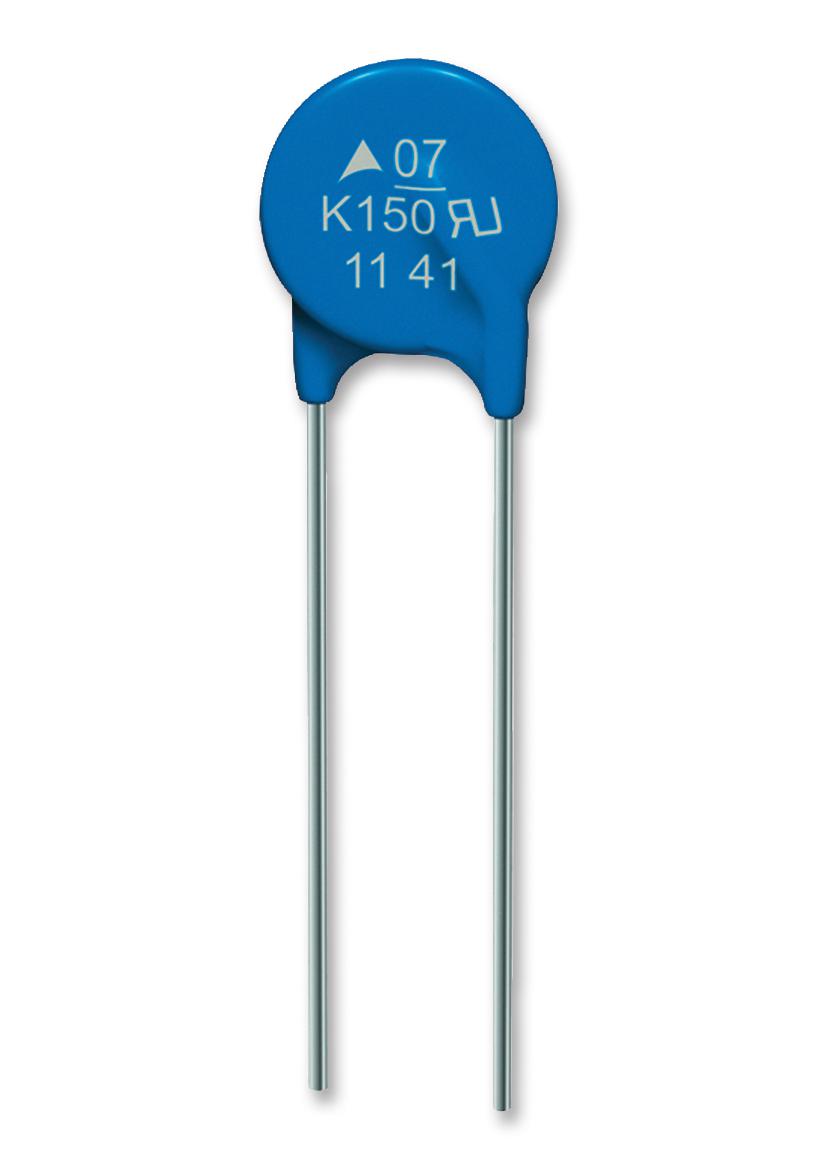

EPCOS - B72207S0300K101 - TVS Varistor, MOV, 30 V, 38 V, StandarD, 93 V, Disc 7mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 30V
- Voltage Rating V DC: 38V
- Product Range: StandarD Series
- Clamping Voltage Vc Max: 93V
- Varistor Case Style: Disc 7mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 250A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 2J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CECC, CSA, UL
- Body Diameter: 9mm
- Capacitance: 1200pF
- Clamping Voltage: 93V
- Clamping Voltage @ 8/20µs Max: 93V
- External Length / Height: 11.5mm
- Lead Length: 30mm
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 250A
- Suppressor Type: Varistor
- Surge Current: 250A
- Transient Energy: 2J
- Varistor Voltage: 47V
- Varistor Voltage @ 1mA: 42.3V
- Varistor Voltage @ 1mA Max: 51.7V
- Varistor Voltage Tolerance +: 10%
