B59990C0120A070 Thermistor, PTC EPCOS

EPCOSUGS :B59990C0120A070 Code de commande:9753176

Prix:
Prix ​​promotionnel€1,42

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1942 unité)

Documents et téléchargements

description

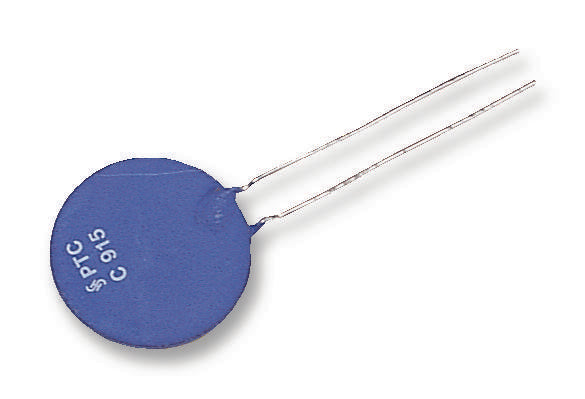

EPCOS - B59990C0120A070 - PTC Thermistor, 55 ohm, Through Hole, 80 V, -25% to +25%, B59990 Series

  • Zero Power Resistance at 25°C: 55ohm
  • Thermistor Mounting: Through Hole
  • Product Range: B59990 Series
  • Operating Voltage Max: 80V
  • Applications: Over Current Protection, Short Circuit Protection
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Body Diameter: 4mm
  • Current Temperature: 120°C
  • Lead Length: 25mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +125°C
  • Operating Voltage: 80V
  • Reference Volts: 63V
  • Resistance: 55ohm
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 25%
  • Resistance Tolerance +: 25%
  • Resistance Tolerance -: 25%
  • Thermistor Case Style: Radial Leaded
  • Thermistor Tolerance: -25% to +25%
  • Thermistor Type: PTC
  • Tripping Current: 0.1A
  • Tripping Temperature: 120°C
  • Voltage Rating V DC: 80V
