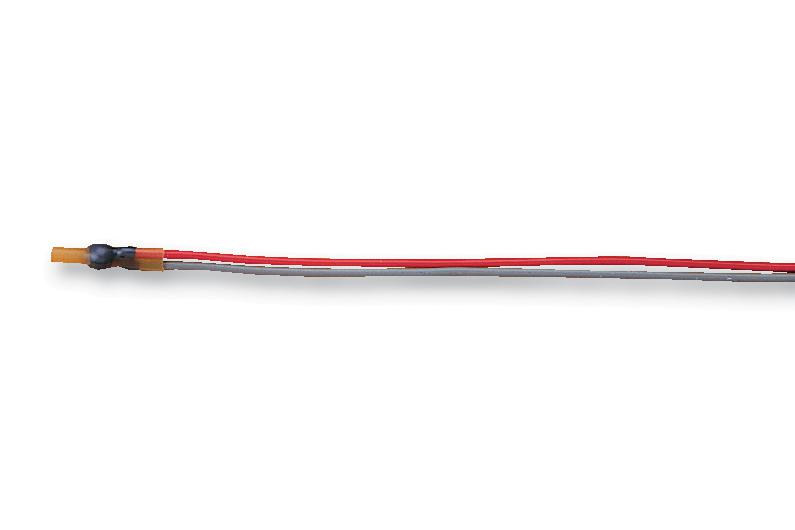

EPCOS - B57227K0333A001 - Thermistor, NTC, 32.762 kohm, B57227K Series, 4300 K, Through Hole, Wire Leaded
- Zero Power Resistance at 25°C: 1.8kohm
- Product Range: B57227K Series
- Thermistor Mounting: Through Hole
- Beta Value (K): 4300K
- Thermistor Case Style: -
- Thermistor Terminals: Wire Leaded
- Operating Temperature Min: -55°C
- Operating Temperature Max: 155°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Beta Value Lower Limit Temperature: 25°C
- Body Diameter: 10mm
- External Length / Height: 14mm
- Full Power Rating Temperature: 25°C
- Lead Length: 380mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +155°C
- Power Dissipation Ptot Max: 200mW
- Resistance: 32.762kohm
- Resistance @ Temperature: 32762ohm
- Resistance Temperature: 25°C
- Resistance Tolerance: ± 10%
- Resistance Tolerance +: 10%
- Resistance Tolerance -: 10%
- Temperature Upper Limit Beta Value: 85°C
- Thermistor Tolerance: -10% to +10%
- Thermistor Type: NTC
