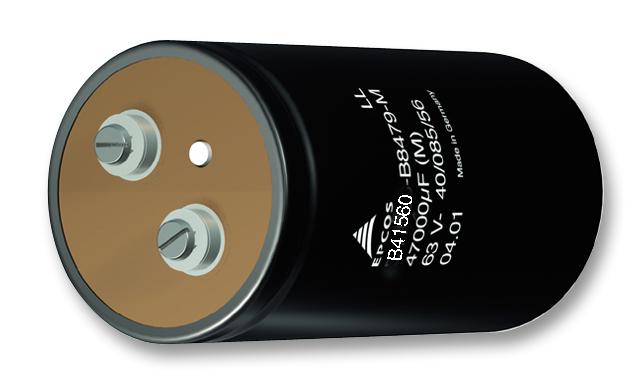

EPCOS - B41560A8479M000 - Electrolytic Capacitor, High Ripple, 47000 µF, 63 V, ± 20%, Screw, 3000 hours @ 105°C
- Capacitance: 47000µF
- Voltage Rating: 63V
- Product Range: B41560 Series
- Lifetime @ Temperature: 3000 hours @ 105°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Screw
- Diameter: 64.3mm
- Lead Spacing: 28.5mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Height: 105mm
- ESR: 0.01ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Capacitance Tolerance ±: ± 20%
- Climatic Category: 40/105/56
- External Length / Height: 105.7mm
- Impedance: 9.4mohm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +105°C
- Operating life Time: 3000h
- Ripple Current AC: 17A
- Ripple Current Temperature: 105°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 63V
