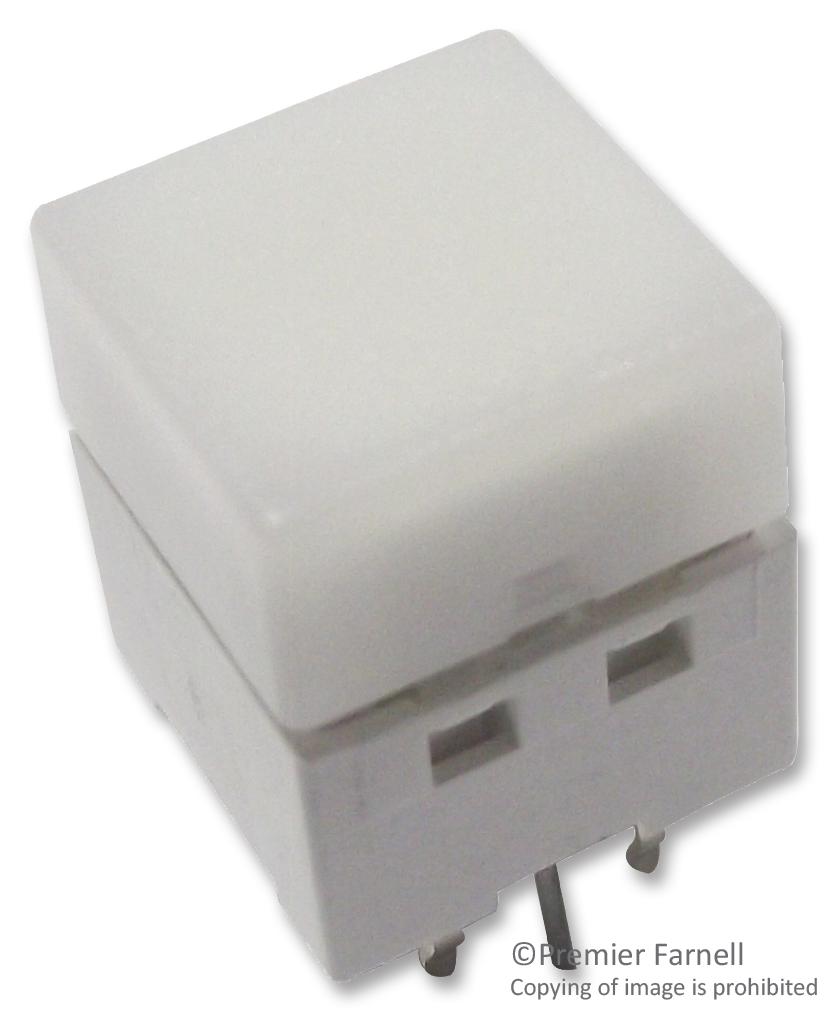

B3W-9000-RG2N Switch, Illuminated, Pcb, Red/Green Omron

OMRONUGS :B3W-9000-RG2N Code de commande:1573164

Prix:
Prix ​​promotionnel€4,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (177 unité)

Documents et téléchargements

description

OMRON - B3W-9000-RG2N - Tactile Switch, B3W-9, Top Actuated, Through Hole, Square Button, 160 gf, 50mA at 24VDC

  • Product Range: B3W-9 Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Square Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 10mm x 10mm
  • IP Rating: IP00
  • Illumination: Illuminated
  • Actuation Type: Top
  • Actuator / Cap Colour: White
  • Colour: White
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 1A
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 24VDC
  • Contact Voltage DC Min: 5VDC
  • Contact Voltage DC Nom: 24V
  • External Depth: 10mm
  • External Length / Height: 11mm
  • External Width: 10mm
  • Insulation Resistance Voltage: 250VDC
  • No. of Electrical Operations: 1000000
  • No. of Mechanical Operations: 1000000
  • Operating Force: 1.57N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Switch Terminals: Solder
  • Switching Current DC Max: 50mA
  • Switching Current DC Min: 1mA
