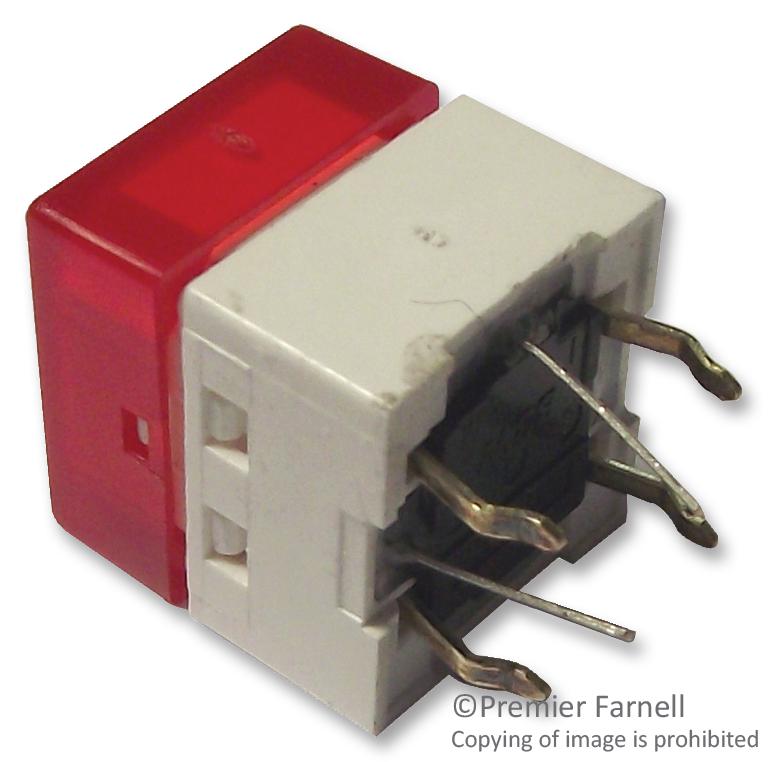

OMRON - B3W-9000-R1R - Tactile Switch, B3W-9, Top Actuated, Through Hole, Square Button, 160 gf, 50mA at 24VDC
- Product Range: B3W-9 Series
- Actuator Orientation: Top Actuated
- Switch Mounting: Through Hole
- Actuator Style: Square Button
- Actuating Force: 160gf
- Contact Rating: 50mA at 24VDC
- Switch Dimensions (L x W): 10mm x 10mm
- IP Rating: IP00
- Illumination: Illuminated
- Actuation Type: Top
- Actuator / Cap Colour: Red
- Colour: Red
- Contact Configuration: SPST-NO
- Contact Current DC Max: 1A
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 24VDC
- Contact Voltage DC Min: 5VDC
- Contact Voltage DC Nom: 24V
- External Depth: 10mm
- External Length / Height: 11mm
- External Width: 10mm
- Forward Current If Max: 20mA
- Insulation Resistance Voltage: 250VDC
- LED Colour: Red
- No. of Electrical Operations: 1000000
- No. of Mechanical Operations: 1000000
- Operating Force: 1.57N
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Switch Terminals: Solder
- Switching Current DC Max: 50mA
- Switching Current DC Min: 1mA
