B3SL-1022P.. Switch, SPST, 0.05A, 12VDC, SMD Omron

OMRONUGS :B3SL-1022P.. Code de commande:1695876

Prix:
Prix ​​promotionnel€1,55

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6336 unité)

Documents et téléchargements

description

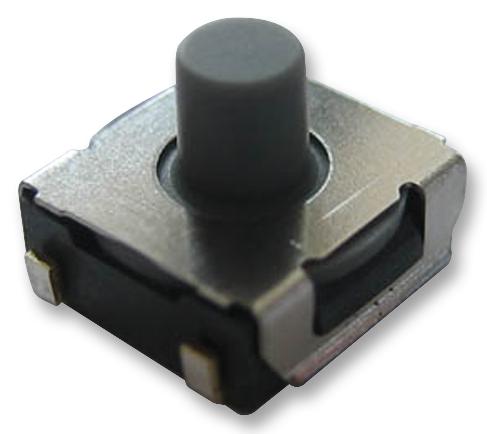

OMRON - B3SL-1022P.. - Tactile Switch, B3SL, Top Actuated, Surface Mount, Round Button, 200 gf, 50mA at 12VDC

  • Product Range: B3SL Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 200gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6.5mm x 6.2mm
  • IP Rating: IP67
  • Illumination: Non Illuminated
  • Actuation Type: Top
  • Contact Configuration: SPST-NO
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 12V
  • Operating Force: 1.96N
  • Operating Temperature Max: 90°C
  • Operating Temperature Min: -25°C
  • Pre-travel: 0.5mm
  • Switch Terminals: Solder
